Preserving Source IP in Kubernetes: A Complete Guide

Maintaining client IP addresses through Services and Ingress for logging, security, and access control

Overview

In Kubernetes clusters, accurately identifying the Source IP (client IP) of incoming external requests is crucial for various operational and security purposes including logging, security analysis, auditing, and access control.

However, in Kubernetes’ default network configuration, depending on the service type, requests pass through kube-proxy, NAT, ingress proxies, etc., causing the Source IP to be changed or lost.

This article explains why Source IP disappears in Kubernetes environments and what configuration to apply to preserve it, organized by Service type and Ingress method.

We’ll also cover practical labs using a Flask app with MetalLB + Ingress-NGINX to see how IPs appear in actual requests and how to preserve them.

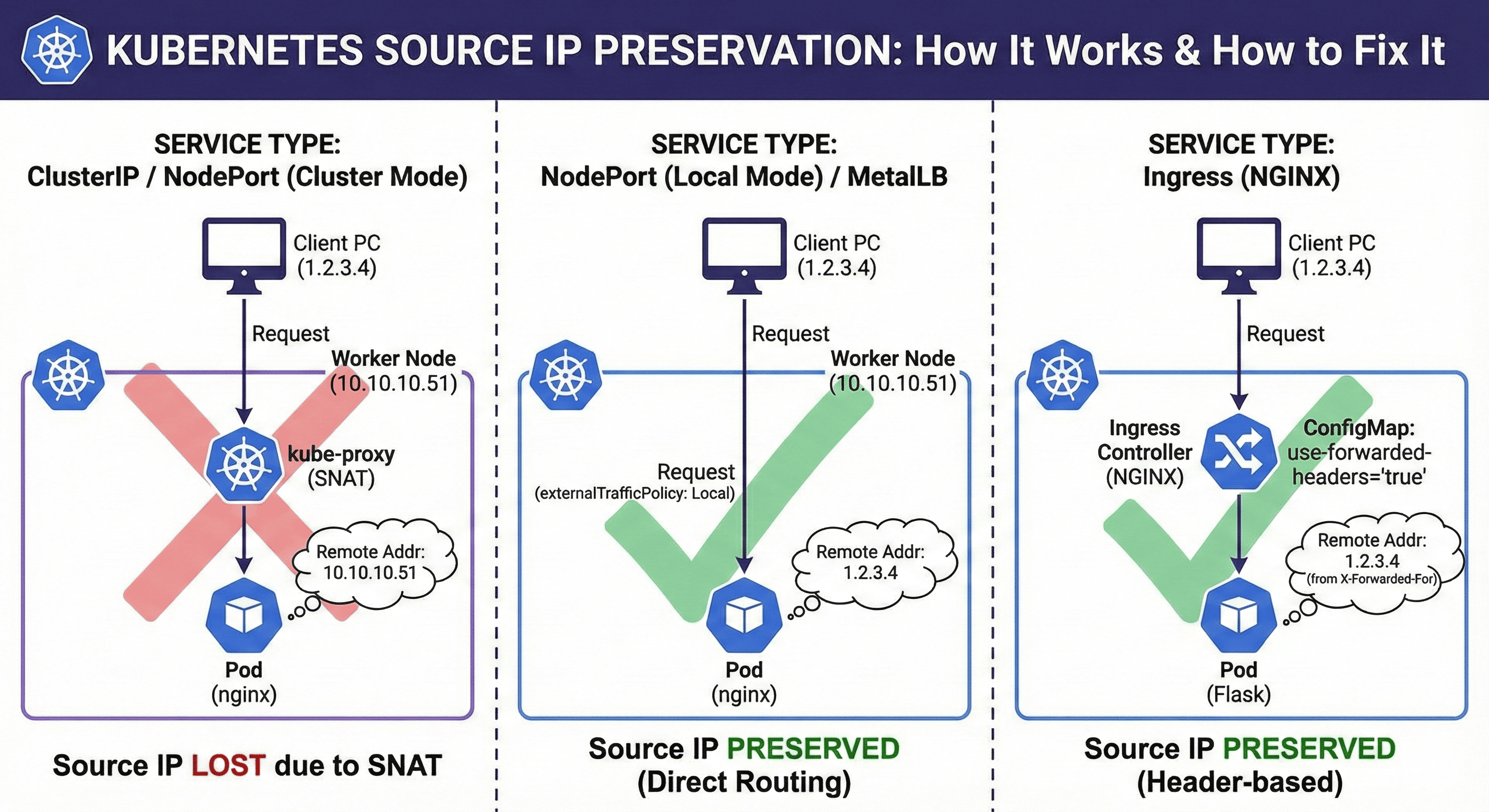

Source IP Preservation by Service Type

Comparison Table

Service Type	Configuration Required	Request Flow	Source IP Preserved
ClusterIP	Not possible	Internal cluster via kube-proxy	❌ No
NodePort / LoadBalancer	Requires `externalTrafficPolicy: Local`	Client → Node IP:Port → Direct Pod	✅ Yes
Ingress	Requires X-Forwarded-For header	Client → Ingress Controller → Pod	✅ Yes (header-based)
MetalLB (LoadBalancer)	Requires `externalTrafficPolicy: Local`	External IP → Direct node routing (L2/BGP)	✅ Yes

Important Note: With Ingress, the actual IP doesn’t reach the pod directly but is transmitted via headers (X-Forwarded-For), requiring header parsing in the application.

Why Does Source IP Disappear in Cluster Mode?

Understanding SNAT

Cluster Mode (default):

kube-proxy performs SNAT (Source NAT) when forwarding traffic via iptables or ipvs
Requester’s IP is replaced with the node’s IP
Result: Node IP is recorded instead of client IP

Local Mode:

No SNAT processing
Traffic forwarded directly to pods on local node
Result: Original IP preserved

Traffic Flow Comparison

Cluster Mode (externalTrafficPolicy: Cluster)
────────────────────────────────────────────
Client (1.2.3.4)
    ↓
LoadBalancer/NodePort
    ↓
Node-1 (kube-proxy SNAT)
    ↓ (Source becomes Node-1 IP)
Pod on Node-2
    ↓
Application sees: Node-1 IP ❌


Local Mode (externalTrafficPolicy: Local)
──────────────────────────────────────────
Client (1.2.3.4)
    ↓
LoadBalancer/NodePort
    ↓
Node-1 (NO SNAT)
    ↓ (Source remains 1.2.3.4)
Pod on Node-1 (must exist!)
    ↓
Application sees: 1.2.3.4 ✅

Using externalTrafficPolicy: Local

Configuration

For LoadBalancer or NodePort services, configure as follows to maintain original client IP:

apiVersion: v1
kind: Service
metadata:
  name: my-service
spec:
  type: LoadBalancer
  externalTrafficPolicy: Local  # Key setting
  selector:
    app: my-app
  ports:
    - port: 80
      targetPort: 8080

Behavior Differences

Local:

Preserves client’s original IP
Only forwards to pods on the receiving node
Caveat: If no pod exists on that node, request fails

Cluster (default):

Request is NAT processed within cluster
Source IP becomes node IP
Load balances across all cluster pods

Best Practices with Local Mode

# Use DaemonSet to ensure pod on every node
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: my-app
spec:
  selector:
    matchLabels:
      app: my-app
  template:
    metadata:
      labels:
        app: my-app
    spec:
      containers:
      - name: my-app
        image: my-app:latest

Preserving Source IP with Ingress (NGINX)

Required Configuration

Two essential settings are needed:

Component	Setting	Description
Service	`externalTrafficPolicy: Local`	Prevents client IP from being SNATed
ConfigMap	`use-forwarded-headers: "true"` `proxy-real-ip-cidr: "0.0.0.0/0"`	Trust X-Forwarded-For and X-Real-IP headers for logs and backend

1. ConfigMap Configuration

Ingress controllers (like NGINX) operate as L7 proxies by default, changing the Source IP. Preserve it with this configuration:

apiVersion: v1
kind: ConfigMap
metadata:
  name: nginx-ingress-controller
  namespace: ingress-nginx
data:
  use-forwarded-headers: "true"
  proxy-real-ip-cidr: "0.0.0.0/0"

Configuration Keys Explained

Key	Description
`use-forwarded-headers: "true"`	Trust and use X-Forwarded-For, X-Real-IP HTTP headers
`proxy-real-ip-cidr: "0.0.0.0/0"`	Trust any client IP. For security, limit to internal network ranges like `10.0.0.0/8`, `192.168.0.0/16`

This allows NGINX to correctly parse $proxy_protocol_addr, $remote_addr, etc.

2. Service Configuration

apiVersion: v1
kind: Service
metadata:
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  type: LoadBalancer  # or NodePort
  externalTrafficPolicy: Local  # Critical!
  ports:
    - port: 80
      targetPort: http
    - port: 443
      targetPort: https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/component: controller

Lab 1: Verifying Source IP

Architecture

External Client
    ↓
NodePort Service (externalTrafficPolicy: Local)
    ↓
Flask Pod (logs request headers)

1. Flask Application ConfigMap

apiVersion: v1
kind: ConfigMap
metadata:
  name: flask-app-config
data:
  app.py: |
    from flask import Flask, request
    import os

    app = Flask(__name__)

    @app.route('/')
    def hello():
        client_ip = request.remote_addr
        x_forwarded_for = request.headers.get('X-Forwarded-For', '')
        x_real_ip = request.headers.get('X-Real-IP', '')
        all_headers = dict(request.headers)

        response = f"""
    Hello from Flask!

    Client Info:
    ------------
    Remote Addr: {client_ip}
    X-Forwarded-For: {x_forwarded_for}
    X-Real-IP: {x_real_ip}

    All Request Headers:
    -------------------
    {all_headers}
    """
        return response

    if __name__ == '__main__':
        app.run(host='0.0.0.0', port=int(os.environ.get('PORT', 8080)))

2. Flask Pod Definition

apiVersion: v1
kind: Pod
metadata:
  name: flask-app
  labels:
    app: flask-app
spec:
  containers:
    - name: flask-app
      image: python:3.9-slim
      ports:
        - containerPort: 8080
      env:
        - name: PORT
          value: "8080"
      command: ["/bin/sh", "-c"]
      args:
        - |
          pip install flask
          mkdir -p /app
          cp /config/app.py /app/
          cd /app
          python app.py
      volumeMounts:
        - name: flask-app-config
          mountPath: /config
  volumes:
    - name: flask-app-config
      configMap:
        name: flask-app-config

3. Service Configuration

apiVersion: v1
kind: Service
metadata:
  name: flask-app-service
spec:
  type: NodePort
  externalTrafficPolicy: Local  # Preserves source IP
  selector:
    app: flask-app
  ports:
    - port: 8080
      targetPort: 8080

4. Complete Manifest

5. Testing from External Client

curl http://<NodeIP>:<NodePort>

6. Lab Results

Same Network Segment:

curl 10.10.10.51:30378

Hello from Flask!

Client Info:
------------
Remote Addr: 10.10.10.50
X-Forwarded-For:
X-Real-IP:

All Request Headers:
-------------------
{'Host': '10.10.10.51:30378', 'User-Agent': 'curl/7.81.0', 'Accept': '*/*'}

✅ Source IP preserved correctly

Different Network Segment:

curl 10.10.10.51:30378

Hello from Flask!

Client Info:
------------
Remote Addr: 10.10.10.251  # Gateway IP, not actual client!
X-Forwarded-For:
X-Real-IP:

All Request Headers:
-------------------
{'Host': '10.10.10.51:30378', 'User-Agent': 'curl/7.81.0', 'Accept': '*/*'}

❌ Shows gateway IP instead of actual external IP

Understanding the Results

Current Situation:

externalTrafficPolicy: Local configured ✅
NodePort direct connection to worker node ✅
Flask shows $remote_addr ✅
Same network: Source IP preserved ✅
Different network: Shows gateway IP (e.g., 10.10.10.251) instead of real external IP ❌

Root Cause: kube-proxy + NAT + Gateway

When requests traverse physical routers or virtual gateways, the Flask pod sees the gateway/NAT IP instead of the actual external client IP:

[Your MacBook]
     ↓ (request)
[Gateway/NAT (10.10.10.251)]
     ↓ (SNAT applied)
[Worker Node (10.10.10.51):32440]
     ↓
[Flask Pod]

Result: Flask receives SNATed IP (gateway IP), not direct client IP

Lab 2: MetalLB + Ingress-NGINX with Source IP

Architecture

External Client
    ↓
MetalLB LoadBalancer (10.10.10.63)
    ↓
Ingress-NGINX Controller (externalTrafficPolicy: Local)
    ↓
NGINX Pod (configured with real_ip_header)

1. MetalLB Setup

First, install MetalLB. For installation guide, see: What is MetalLB?

kubectl get ipaddresspools.metallb.io -n metallb

NAME      AUTO ASSIGN   AVOID BUGGY IPS   ADDRESSES
ip-pool   true          false             ["10.10.10.55-10.10.10.58","10.10.10.62-10.10.10.65"]

2. Ingress-NGINX Controller Configuration

Create test Ingress NGINX Controller with Helm:

# values/mgmt-test.yaml
global:
  image:
    registry: registry.k8s.io

controller:
  ingressClassResource:
    name: nginx-test  # Unique name for distinction
    enabled: true
    default: false  # Not the default controller
    controllerValue: "k8s.io/ingress-nginx-test"

  service:
    enabled: true
    type: LoadBalancer
    loadBalancerIP: "10.10.10.63"
    externalTrafficPolicy: "Local"  # Critical!

  config:
    use-forwarded-headers: "true"
    real-ip-header: "X-Forwarded-For"
    set-real-ip-from: "0.0.0.0/0"
    real-ip-recursive: "true"

Install

helm install ingress-nginx-test . -n ingress-nginx -f ./values/mgmt-test.yaml

Verify Configuration

# Check service
kubectl get svc -n ingress-nginx ingress-nginx-test-controller -o yaml | grep external
  externalTrafficPolicy: Local

# Check configmap
kubectl get cm -n ingress-nginx ingress-nginx-test-controller -o yaml
apiVersion: v1
data:
  proxy-real-ip-cidr: 0.0.0.0/0
  use-forwarded-headers: "true"
  real-ip-header: X-Forwarded-For
  real-ip-recursive: "true"

3. NGINX Test Application

apiVersion: v1
kind: ConfigMap
metadata:
  name: nginx-config
  namespace: default
data:
  nginx.conf: |
    events {}
    http {
      log_format main '$http_x_forwarded_for - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';
      access_log /var/log/nginx/access.log main;

      set_real_ip_from 0.0.0.0/0;
      real_ip_header X-Forwarded-For;
      real_ip_recursive on;

      server {
        listen 80;
        location / {
          return 200 'Hello from NGINX! Remote Addr: $remote_addr X-Forwarded-For: $http_x_forwarded_for';
          add_header Content-Type text/plain;
        }
      }
    }
---
apiVersion: v1
kind: Pod
metadata:
  name: nginx
  labels:
    app: nginx
spec:
  containers:
    - name: nginx
      image: nginx:latest
      ports:
        - containerPort: 80
      volumeMounts:
        - name: config
          mountPath: /etc/nginx/nginx.conf
          subPath: nginx.conf
  volumes:
    - name: config
      configMap:
        name: nginx-config
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-service
spec:
  selector:
    app: nginx
  ports:
    - port: 80
      targetPort: 80
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: nginx-ingress
spec:
  ingressClassName: nginx-test
  rules:
    - host: test.local
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: nginx-service
                port:
                  number: 80

4. Testing

Add to /etc/hosts (for local environment):

echo "10.10.10.63 test.local" | sudo tee -a /etc/hosts

Test from External Network:

curl http://test.local

Hello from Nginx!
Remote Addr: 10.233.65.165
X-Forwarded-For: 10.10.10.251

Test from Internal Network:

curl http://test.local

Hello from Nginx!
Remote Addr: 10.233.65.165
X-Forwarded-For: 10.10.10.60

Test with Custom X-Forwarded-For:

curl -H "Host: test.local" -H "X-Forwarded-For: 1.2.3.4" http://10.10.10.63

If NGINX logs show 1.2.3.4, it confirms NGINX pod is correctly reading real_ip_header.

Advanced Source IP Scenarios

Scenario 1: Multi-Tier Architecture

Internet
    ↓
Cloud Load Balancer
    ↓ (X-Forwarded-For added)
MetalLB LoadBalancer
    ↓ (preserves X-Forwarded-For)
Ingress-NGINX
    ↓ (parses X-Forwarded-For)
Application Pod

Configuration:

# Ingress NGINX ConfigMap
data:
  use-forwarded-headers: "true"
  compute-full-forwarded-for: "true"  # Include all proxy IPs
  forwarded-for-header: "X-Forwarded-For"
  proxy-real-ip-cidr: "10.0.0.0/8"  # Trust internal network

Scenario 2: CDN + Kubernetes

When using CDN (CloudFlare, Akamai):

# Trust CDN IP ranges
data:
  proxy-real-ip-cidr: "173.245.48.0/20,103.21.244.0/22,..."
  real-ip-header: "CF-Connecting-IP"  # CloudFlare header

Scenario 3: Multiple Ingress Controllers

# Public ingress (strict checking)
controller-public:
  config:
    proxy-real-ip-cidr: "0.0.0.0/0"
    use-forwarded-headers: "true"

# Internal ingress (trust internal)
controller-internal:
  config:
    proxy-real-ip-cidr: "10.0.0.0/8,172.16.0.0/12"
    use-forwarded-headers: "false"

Troubleshooting Guide

Issue 1: Source IP Still Shows Node IP

Symptoms:

externalTrafficPolicy: Local configured
Still seeing node IP in logs

Diagnosis:

# Check service configuration
kubectl get svc my-service -o yaml | grep externalTrafficPolicy

# Check pod distribution
kubectl get pods -o wide

# Check if pod exists on target node
kubectl get pods -l app=my-app -o wide | grep <node-name>

Solutions:

Ensure pods exist on nodes receiving traffic
Use DaemonSet for guaranteed pod placement
Verify no additional proxy layers

Issue 2: X-Forwarded-For Header Empty

Symptoms:

Ingress configured correctly
X-Forwarded-For header is empty or missing

Diagnosis:

# Check Ingress NGINX ConfigMap
kubectl get cm -n ingress-nginx ingress-nginx-controller -o yaml

# Check Ingress controller logs
kubectl logs -n ingress-nginx deployment/ingress-nginx-controller

# Test with curl verbose
curl -v -H "X-Forwarded-For: 1.2.3.4" http://test.local

Solutions:

# Ensure these settings in ConfigMap
data:
  use-forwarded-headers: "true"
  compute-full-forwarded-for: "true"
  forwarded-for-header: "X-Forwarded-For"

Issue 3: Gateway IP Instead of Client IP

Symptoms:

External requests show gateway IP
Internal requests work correctly

Root Cause:

Network routing through gateway/NAT
SNAT happens before reaching Kubernetes

Solutions:

Use Ingress with X-Forwarded-For: Application must parse headers
Configure upstream proxy: If possible, configure upstream to preserve IP
Use Proxy Protocol: Enable at load balancer level

# Enable Proxy Protocol on ingress
controller:
  config:
    use-proxy-protocol: "true"
  service:
    annotations:
      service.beta.kubernetes.io/aws-load-balancer-proxy-protocol: "*"

Issue 4: Inconsistent IP Logging

Symptoms:

Sometimes real IP, sometimes node IP
Random behavior

Diagnosis:

# Check pod distribution
kubectl get pods -o wide

# Check service endpoints
kubectl get endpoints my-service

# Check node labels and taints
kubectl get nodes -o wide

Solutions:

# Use DaemonSet for consistent placement
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: my-app
spec:
  selector:
    matchLabels:
      app: my-app
  template:
    spec:
      nodeSelector:
        node-role.kubernetes.io/worker: ""
      containers:
      - name: my-app
        image: my-app:latest

Security Considerations

1. Trust Boundaries

# Don't trust all IPs in production
proxy-real-ip-cidr: "10.0.0.0/8,172.16.0.0/12,192.168.0.0/16"  # Internal only

# For public ingress, be more restrictive
proxy-real-ip-cidr: "<known-lb-cidrs>"

2. Header Validation

# Application-level validation
def get_client_ip(request):
    # Check X-Forwarded-For
    forwarded_for = request.headers.get('X-Forwarded-For', '')
    if forwarded_for:
        # Get first IP (original client)
        client_ip = forwarded_for.split(',')[0].strip()

        # Validate IP format
        try:
            ipaddress.ip_address(client_ip)
            return client_ip
        except ValueError:
            pass

    # Fallback to remote_addr
    return request.remote_addr

3. Rate Limiting by IP

# NGINX Ingress rate limiting by real IP
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: rate-limited-ingress
  annotations:
    nginx.ingress.kubernetes.io/limit-rps: "10"
    nginx.ingress.kubernetes.io/limit-rpm: "100"
spec:
  rules:
  - host: api.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: api-service
            port:
              number: 80

Best Practices

✅ Production Checklist

1. Service Configuration

Use externalTrafficPolicy: Local for LoadBalancer/NodePort
Deploy with DaemonSet for guaranteed pod placement
Test failover scenarios

2. Ingress Configuration

Enable use-forwarded-headers
Configure proxy-real-ip-cidr appropriately
Set real-ip-recursive for multi-proxy scenarios

3. Application Configuration

Parse X-Forwarded-For headers correctly
Validate IP addresses
Log both remote_addr and X-Forwarded-For

4. Monitoring

Track source IP in logs
Alert on anomalous IP patterns
Monitor header tampering attempts

5. Security

Restrict trusted CIDR ranges
Implement rate limiting by IP
Regular security audits of IP-based rules

Monitoring and Logging

Structured Logging Example

import logging
import json

def log_request(request):
    log_data = {
        'timestamp': datetime.now().isoformat(),
        'remote_addr': request.remote_addr,
        'x_forwarded_for': request.headers.get('X-Forwarded-For', ''),
        'x_real_ip': request.headers.get('X-Real-IP', ''),
        'method': request.method,
        'path': request.path,
        'user_agent': request.headers.get('User-Agent', ''),
    }

    logging.info(json.dumps(log_data))

Prometheus Metrics

# Monitor requests by source IP
- record: http_requests_by_source_ip
  expr: |
    sum(rate(http_requests_total[5m])) by (source_ip)

Conclusion

Preserving Source IP in Kubernetes goes beyond simple client location identification—it’s essential for security policy establishment, attacker tracking, service optimization, access control, and traffic analysis.

Key Takeaways:

✅ externalTrafficPolicy: Local is the most critical setting for avoiding SNAT and preserving original IP in Kubernetes services

✅ In Ingress environments, original IP is transmitted indirectly through X-Forwarded-For and real_ip_header configuration

✅ Infrastructure like MetalLB, Cilium should be configured to accurately transmit Source IP at L2/L3 level

Production Considerations:

In actual production environments, you should design:

DaemonSet for pod distribution
IP trust range restrictions (CIDR filtering)
Security considerations
Minimize unnecessary SNAT processing
Ensure reliability of client identification

The ability to accurately identify and log client source IPs is fundamental to operating secure, auditable, and compliant Kubernetes services.

Preserving Source IP in Kubernetes: A Complete Guide

Overview

Source IP Preservation by Service Type

Comparison Table

Why Does Source IP Disappear in Cluster Mode?

Understanding SNAT

Traffic Flow Comparison

Using externalTrafficPolicy: Local

Configuration

Behavior Differences

Local:

Cluster (default):

Best Practices with Local Mode

Preserving Source IP with Ingress (NGINX)

Required Configuration

1. ConfigMap Configuration

Configuration Keys Explained

2. Service Configuration

Lab 1: Verifying Source IP

Architecture

1. Flask Application ConfigMap

2. Flask Pod Definition

3. Service Configuration

4. Complete Manifest

5. Testing from External Client

6. Lab Results

Same Network Segment:

Different Network Segment:

Understanding the Results

Root Cause: kube-proxy + NAT + Gateway

Lab 2: MetalLB + Ingress-NGINX with Source IP

Architecture

1. MetalLB Setup

2. Ingress-NGINX Controller Configuration

Install

Verify Configuration

3. NGINX Test Application

4. Testing

Advanced Source IP Scenarios

Scenario 1: Multi-Tier Architecture

Configuration:

Scenario 2: CDN + Kubernetes

Scenario 3: Multiple Ingress Controllers

Troubleshooting Guide

Issue 1: Source IP Still Shows Node IP

Symptoms:

Diagnosis:

Issue 2: X-Forwarded-For Header Empty

Symptoms:

Diagnosis:

Solutions:

Issue 3: Gateway IP Instead of Client IP

Symptoms:

Root Cause:

Solutions:

Issue 4: Inconsistent IP Logging

Symptoms:

Diagnosis:

Solutions:

Security Considerations

1. Trust Boundaries

2. Header Validation

3. Rate Limiting by IP

Best Practices

✅ Production Checklist

Monitoring and Logging

Structured Logging Example

Prometheus Metrics

Conclusion

Key Takeaways:

Production Considerations:

References

Complete Kubernetes Internal Network Analysis - Packet Flow Tracing in IPVS Mode

Share

Somaz

Comments
