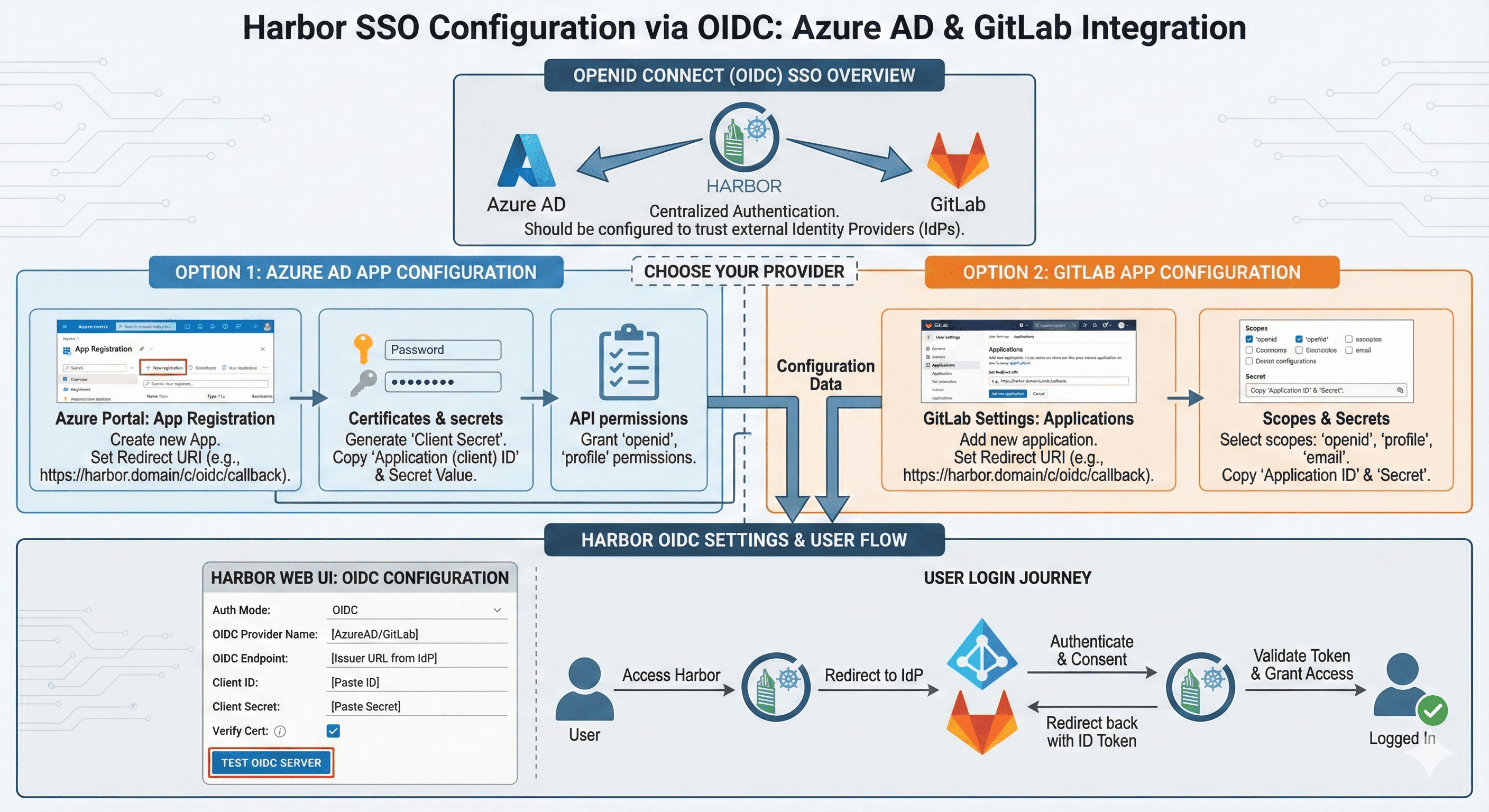

Harbor SSO Configuration Guide: OIDC with Azure AD and GitLab

Setting up Single Sign-On for Harbor container registry using OpenID Connect authentication

Harbor SSO Configuration Guide: OIDC with Azure AD and GitLab


Overview

This post covers how to configure Harbor SSO (Single Sign-On). We’ll use OIDC (OpenID Connect) Auth Mode and explore configurations for both Azure AD and GitLab separately.


What is Harbor?

Harbor is an open-source container registry that secures artifacts with policies and role-based access control, ensures images are scanned and free from vulnerabilities, and signs images as trusted.


Why SSO for Harbor?

Benefits of SSO Integration:


Azure AD App Configuration


Step 1: Create App Registration

Navigate to Azure Portal:

  1. Go to Azure Active Directory → App registrations
  2. Click New registration


Registration Details:

Name: Harbor SSO
Supported account types: Accounts in this organizational directory only (Single tenant)
Redirect URI:
  - Platform: Web
  - URL: https://[HARBOR_URL]/c/oidc/callback
  1. Click Register


Step 2: Configure App Settings

Collect Application Information:

Navigate to the Overview page and note:


Create Client Secret:

  1. Go to Certificates & secrets
  2. Click New client secret
  3. Add description: “Harbor OIDC Secret”
  4. Select expiration: 24 months (or as per policy)
  5. Click Add
  6. Immediately copy the secret value (you cannot view it again!)
Example Secret: abcdefgh123456789IJKLMNOP_QRSTuvwxyz


Step 3: Configure Token Claims

Add Optional Claims:

  1. Navigate to Token configuration
  2. Click Add optional claim
  3. Select ID token type
  4. Add these claims:
    • email
    • preferred_username
    • name
  5. Click Add


Step 4: Configure API Permissions

Add Microsoft Graph Permissions:

  1. Go to API permissions
  2. Click Add a permission
  3. Select Microsoft Graph → Delegated permissions
  4. Add these permissions:
    • email
    • openid
    • profile
    • User.Read
  5. Click Add permissions
  6. Click Grant admin consent (requires admin privileges)


Step 5: Note Important Endpoints

Azure AD OIDC Endpoints (replace {tenant_id} with your actual tenant ID):

Authorization Endpoint:
https://login.microsoftonline.com/{tenant_id}/oauth2/v2.0/authorize

Token Endpoint:
https://login.microsoftonline.com/{tenant_id}/oauth2/v2.0/token

JWKS Endpoint:
https://login.microsoftonline.com/{tenant_id}/discovery/v2.0/keys

User Info Endpoint:
https://graph.microsoft.com/oidc/userinfo

OpenID Configuration:
https://login.microsoftonline.com/{tenant_id}/v2.0/.well-known/openid-configuration


GitLab App Configuration


Step 1: Create Application

Navigate to GitLab:

  1. Go to Admin Area → Applications (requires admin access)
    • Or: User Settings → Applications (for user-level apps)
  2. Click New application


Application Details:

Name: Harbor
Redirect URI: https://[HARBOR_URL]/c/oidc/callback
Confidential: ✓ (checked)


Step 2: Select Scopes

Required Scopes:


Step 3: Save and Note Credentials

After clicking Save application:

Application ID (Client ID):
abcdef1234567890abcdef1234567890abcdef1234567890abcdef1234567890

Secret (Client Secret):
1234567890abcdef1234567890abcdef1234567890abcdef1234567890abcd

⚠️ Important: Copy the secret immediately—you cannot retrieve it later!


Step 4: Note GitLab OIDC Endpoints

GitLab OIDC Endpoints:

Authorization Endpoint:
https://gitlab.example.com/oauth/authorize

Token Endpoint:
https://gitlab.example.com/oauth/token

User Info Endpoint:
https://gitlab.example.com/oauth/userinfo

OpenID Configuration:
https://gitlab.example.com/.well-known/openid-configuration


Harbor OIDC Configuration


Important: Auth Mode Change Restrictions

⚠️ Before Changing Auth Mode:

If you cannot change auth mode, you must:

  1. Delete all users except admin and anonymous
  2. Remove any foreign key connections
  3. Ensure no active sessions exist


Azure AD OIDC Settings in Harbor

Navigate to Harbor Admin Portal:

  1. Login as admin
  2. Go to Configuration → Authentication
  3. Select OIDC as Auth Mode


Configuration Parameters:

Auth Mode: OIDC

OIDC Provider Name: Azure AD

OIDC Endpoint: https://login.microsoftonline.com/{tenant_id}/v2.0

OIDC Client ID: [Application (client) ID from Azure]

OIDC Client Secret: [Client Secret from Azure]

Group Claim Name: groups

OIDC Scope: openid,profile,email

Verify Certificate: ✓ (checked)

Automatic onboarding: ✓ (checked)

Username Claim: preferred_username


Example Configuration:

Auth Mode: OIDC
OIDC Provider Name: Azure AD
OIDC Endpoint: https://login.microsoftonline.com/87654321-4321-4321-4321-cba987654321/v2.0
OIDC Client ID: 12345678-1234-1234-1234-123456789abc
OIDC Client Secret: abcdefgh123456789IJKLMNOP_QRSTuvwxyz
OIDC Scope: openid,profile,email
Group Claim Name: groups
Verify Certificate: ✓
Automatic onboarding: ✓
Username Claim: preferred_username


GitLab OIDC Settings in Harbor

Configuration Parameters:

Auth Mode: OIDC

OIDC Provider Name: GitLab

OIDC Endpoint: https://gitlab.example.com

OIDC Client ID: [Application ID from GitLab]

OIDC Client Secret: [Secret from GitLab]

Group Claim Name: groups

OIDC Scope: openid,profile,email,read_user

Verify Certificate: ✓ (checked)

Automatic onboarding: ✓ (checked)

Username Claim: preferred_username


Example Configuration:

Auth Mode: OIDC
OIDC Provider Name: GitLab
OIDC Endpoint: https://gitlab.somaz.link
OIDC Client ID: abcdef1234567890abcdef1234567890abcdef1234567890abcdef1234567890
OIDC Client Secret: 1234567890abcdef1234567890abcdef1234567890abcdef1234567890abcd
OIDC Scope: openid,profile,email,read_user
Group Claim Name: groups
Verify Certificate: ✓
Automatic onboarding: ✓
Username Claim: preferred_username


Testing SSO Integration


Step 1: Logout from Harbor

Clear any existing sessions:

# Clear browser cookies for Harbor domain
# Or use incognito/private browsing mode


Step 2: Access Harbor Login Page

Navigate to:

https://[HARBOR_URL]

You should see:


Step 3: Test OIDC Login

  1. Click “Login via OIDC Provider”
  2. You’ll be redirected to Azure AD or GitLab login page
  3. Enter your credentials
  4. Authorize Harbor application (first time only)
  5. You’ll be redirected back to Harbor and logged in


Step 4: Verify User Information

After successful login, check:


Advanced Configuration


Group Mapping for Azure AD

Configure Azure AD Groups:

  1. In Azure AD, create security groups:
    harbor-admins
harbor-developers
harbor-guests
  2. Add the groups claim to your app:
    • Token configuration → Add groups claim
    • Select Security groups

  3. Note Group Object IDs from Azure AD

  4. In Harbor, create corresponding groups with matching names or IDs


Group Mapping for GitLab

GitLab automatically includes groups in the OIDC token:

{
  "sub": "1234567",
  "name": "John Doe",
  "email": "john.doe@example.com",
  "groups": ["developers", "admins"]
}

Harbor will automatically map these to Harbor groups.


Custom Claims Configuration

Azure AD Custom Claims (/etc/harbor/harbor.yml):

oidc_name: Azure AD
oidc_endpoint: https://login.microsoftonline.com/{tenant_id}/v2.0
oidc_client_id: {client_id}
oidc_client_secret: {client_secret}
oidc_groups_claim: groups
oidc_admin_group: harbor-admins
oidc_scope: openid,profile,email
oidc_user_claim: preferred_username
oidc_verify_cert: true
oidc_auto_onboard: true


Troubleshooting


Issue 1: “Invalid Redirect URI”

Symptoms:

Solutions:

  1. Verify redirect URI in Azure AD/GitLab matches exactly:
    https://[HARBOR_URL]/c/oidc/callback
  2. Check for trailing slashes
  3. Ensure protocol matches (https)
  4. Verify domain spelling


Issue 2: “Unable to Verify Token”

Symptoms:

Solutions:

  1. Check certificate verification:
    oidc_verify_cert: false  # Only for testing!
  2. Verify OIDC endpoint:
    curl https://login.microsoftonline.com/{tenant_id}/v2.0/.well-known/openid-configuration
  3. Check system time:
    date  # Ensure server time is accurate
ntpdate -q pool.ntp.org  # Check NTP sync


Issue 3: User Cannot Login

Symptoms:

Solutions:

  1. Enable automatic onboarding:
    oidc_auto_onboard: true
  2. Check username claim:
    # Try different claim names
oidc_user_claim: preferred_username
# or
oidc_user_claim: email
# or
oidc_user_claim: sub
  3. Verify scopes:
    oidc_scope: openid,profile,email


Issue 4: Groups Not Syncing

Symptoms:

Solutions:

  1. Azure AD - Add groups claim:
    • Token configuration → Add groups claim
    • Select security groups
  2. Verify group claim name:
    oidc_groups_claim: groups
  3. Check token contents:
    # Decode JWT token to verify claims
# Use jwt.io or similar tool
  4. Match group names:
    • Create groups in Harbor with exact same names as in IdP


Issue 5: SSL Certificate Errors

Symptoms:

Solutions:

  1. Add CA certificate to Harbor:
    # Copy CA cert
cp ca.crt /etc/harbor/ssl/

# Update harbor.yml
# internal_tls:
#   enabled: true
#   dir: /etc/harbor/ssl
  2. Temporarily disable verification (testing only):
    oidc_verify_cert: false
  3. Update system CA bundle:
    sudo cp custom-ca.crt /usr/local/share/ca-certificates/
sudo update-ca-certificates


Security Best Practices


1. Client Secret Management

Rotate secrets regularly:

# Azure AD: Set expiration
# Certificate validity: 12-24 months

# GitLab: Regenerate periodically
# Update Harbor configuration accordingly


2. Scope Minimization

Only request necessary scopes:

# Minimal scopes
oidc_scope: openid,profile,email

# Avoid requesting:
# - User.ReadWrite.All
# - Directory.ReadWrite.All
# - Group.ReadWrite.All


3. Use HTTPS Everywhere

Enforce HTTPS:

# harbor.yml
hostname: harbor.example.com
http:
  port: 80
  # Redirect HTTP to HTTPS
https:
  port: 443
  certificate: /path/to/cert.crt
  private_key: /path/to/cert.key


4. Audit Logging

Enable comprehensive logging:

# harbor.yml
log:
  level: info
  local:
    rotate_count: 50
    rotate_size: 200M

Monitor for suspicious activity:


Role-Based Access Control


Harbor Project Roles

Role Permissions
Project Admin Full control over project
Developer Push/pull images, view logs
Guest Pull images only
Limited Guest Pull images from whitelisted repositories


Mapping IdP Groups to Harbor Roles

Example mapping:

# IdP Group → Harbor Role mapping

Azure AD/GitLab Group          Harbor Project Role
---------------------------------------------------
harbor-admins                  → Project Admin
harbor-developers              → Developer
harbor-users                   → Guest


Configure Group Permissions

  1. Create Project in Harbor
  2. Go to Members tab
  3. Click + User/Group
  4. Select Group (from OIDC)
  5. Assign appropriate role


Docker Login with SSO


Using CLI with OIDC

Generate CLI Secret in Harbor:

  1. Login to Harbor web UI via OIDC
  2. Go to User Profile → User Settings
  3. Copy CLI secret (or generate new one)


Docker login:

# Use username and CLI secret
docker login harbor.example.com

Username: john.doe@example.com
Password: [paste CLI secret]

Login Succeeded


Alternative: Robot Accounts

For automation, use robot accounts instead of user credentials:

# Create robot account in Harbor UI
# Project → Robot Accounts → New Robot Account

# Use robot account credentials
docker login harbor.example.com

Username: robot$project+robotname
Password: [robot account token]


Monitoring and Maintenance


Health Checks

Regular checks:

# Check Harbor components
docker-compose ps

# Check OIDC endpoint connectivity
curl https://login.microsoftonline.com/{tenant}/v2.0/.well-known/openid-configuration

# Check Harbor logs
docker-compose logs -f core


Metrics to Monitor

Metric Description Alert Threshold
Failed SSO Logins Authentication failures > 10/hour
Token Expiry Errors Expired/invalid tokens > 5/hour
Group Sync Failures Group mapping issues > 0
API Response Time OIDC endpoint latency > 2 seconds


Migration from Database Auth


Migration Steps

1. Document Current Users:

-- Connect to Harbor database
SELECT username, email FROM harbor_user WHERE deleted = false;


2. Create Matching Users in IdP:


3. Test OIDC with Test Users:


4. Switch Auth Mode:

# Backup harbor.yml
cp /data/harbor/harbor.yml /data/harbor/harbor.yml.backup

# Update auth mode
auth_mode: oidc_auth


5. Migrate Existing Users:


Summary


Key Configuration Steps

✅ Azure AD / GitLab Setup:

✅ Harbor OIDC Configuration:

✅ Group Mapping:

✅ Azure AD Specific Endpoints:

Authorization: https://login.microsoftonline.com/{tenant_id}/oauth2/v2.0/authorize
Token: https://login.microsoftonline.com/{tenant_id}/oauth2/v2.0/token
JWKS: https://login.microsoftonline.com/{tenant_id}/discovery/v2.0/keys
UserInfo: https://graph.microsoft.com/oidc/userinfo


Benefits Achieved


References
