AWS Elastic File System (EFS) with Kubernetes - Complete Implementation Guide

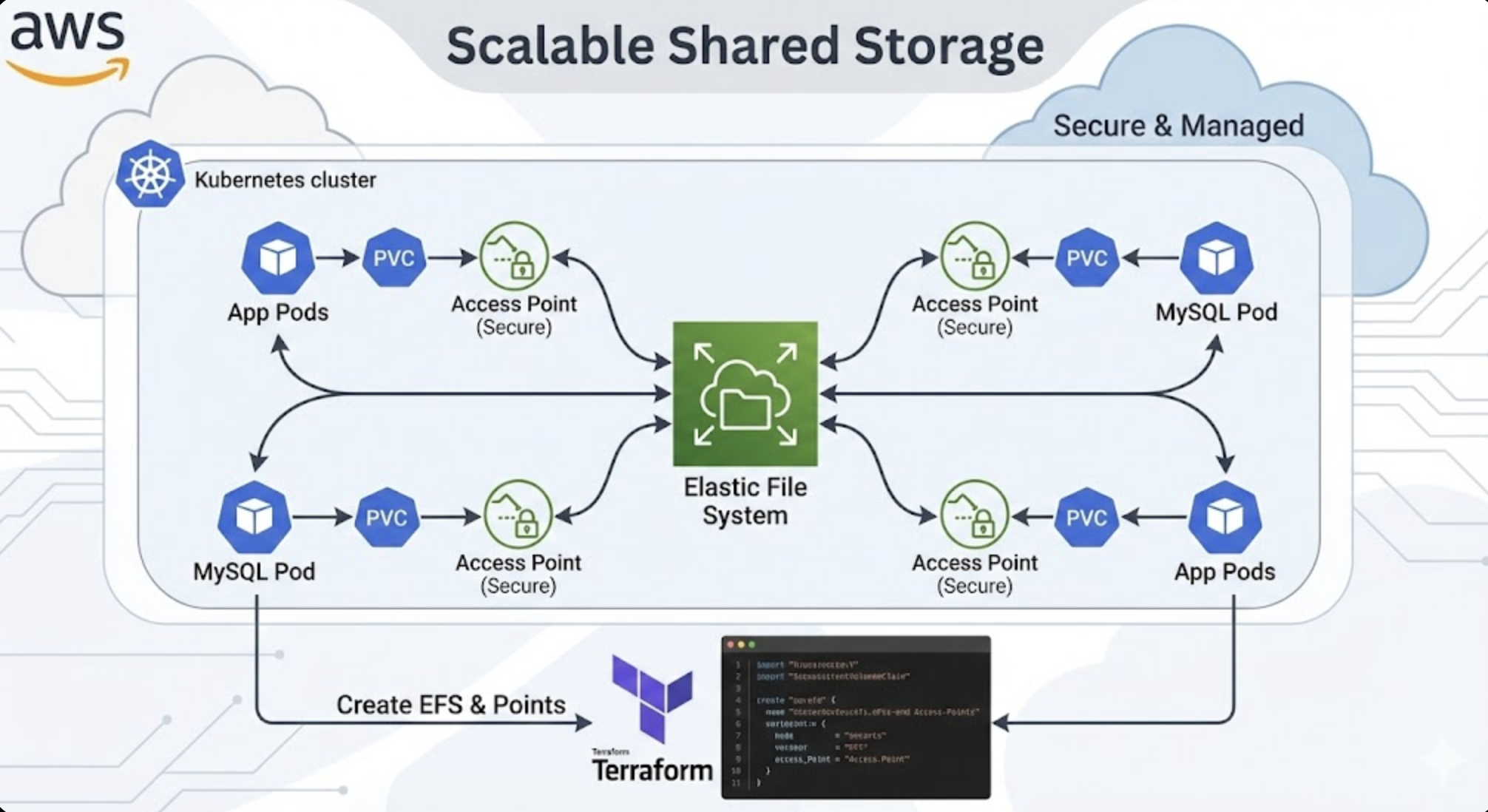

Building scalable shared storage for Kubernetes workloads using AWS EFS

Overview

AWS Elastic File System (EFS) is a scalable, fully managed NFS file system that provides shared storage accessible by multiple EC2 instances simultaneously.

In Kubernetes environments, EFS is particularly valuable when multiple pods need to share the same data.

This comprehensive guide will walk you through implementing EFS with Terraform and utilizing it in Kubernetes for persistent storage solutions.

What is EFS?

Amazon Elastic File System (EFS) is a fully managed NFS (Network File System) service provided by AWS.

It can be understood as the cloud version of network storage traditionally used in on-premises environments.

EFS vs Other AWS Storage Services

Feature	EFS	EBS	S3	FSx
Access Method	Network File System	Block Storage	Object Storage	High-performance FS
Concurrent Access	Multiple instances	Single instance	API-based	Multiple instances
Use Case	Shared file storage	OS, databases	Backup, archive, web assets	HPC, ML workloads
Scalability	Auto-scaling	Manual scaling	Unlimited	Fixed capacity

When to Use EFS

Suitable Use Cases

Container Environments: When multiple pods/containers need to share the same configuration files or data
Content Management: Web servers serving common media files or static content
Data Analytics: Multiple analysis workers requiring simultaneous access to the same datasets
Backup and Archiving: Centralized management of backup data from multiple systems

Unsuitable Use Cases

High-performance Databases: OLTP databases requiring low latency
Temporary Storage: Temporary data tied to instance lifecycle
Single Access Workloads: Storage accessed by only one instance

Understanding EFS and Access Points

Key Features of EFS

Scalability: Automatically scales up to petabyte scale
High Availability: Automatically replicated across multiple Availability Zones
Security: Supports encryption at rest via KMS and encryption in transit
Performance: Offers General Purpose and Max I/O performance modes

Role of Access Points

Access Points provide application-specific entry points to EFS file systems.

Each Access Point can:

Set a specific directory path as root
Apply POSIX user and group permissions
Enable access control independent of file system policies

EFS Configuration with Terraform

Here’s an example EFS configuration for a game server environment:

# KMS Key for EFS encryption at rest
resource "aws_kms_key" "gameserver_efs_key" {
  description             = "KMS key for beta-gameserver-efs encryption"
  deletion_window_in_days = 7

  tags = {
    Environment = var.environment
    Terraform   = var.terraform
  }
}

resource "aws_kms_alias" "gameserver_efs_key_alias" {
  name          = "alias/beta-gameserver-efs"
  target_key_id = aws_kms_key.gameserver_efs_key.id
}

# EFS File System
module "beta_gameserver_efs" {
  source = "terraform-aws-modules/efs/aws"

  # File system configuration
  name           = var.beta_gameserver_efs
  creation_token = "beta-gameserver-efs-token"
  encrypted      = true
  kms_key_arn    = aws_kms_key.gameserver_efs_key.arn

  # Performance and throughput modes
  performance_mode = "generalPurpose"
  throughput_mode  = "provisioned"
  provisioned_throughput_in_mibps = 100

  # File system policy
  attach_policy                      = true
  bypass_policy_lockout_safety_check = false
  policy_statements = [
    {
      sid = "BetaGameServerAccess"
      actions = [
        "elasticfilesystem:ClientMount",
        "elasticfilesystem:ClientWrite",
        "elasticfilesystem:ClientRootAccess"
      ]
      principals = [
        {
          type        = "AWS"
          identifiers = ["arn:aws:iam::${data.aws_caller_identity.current.account_id}:root"]
        }
      ]
    }
  ]

  # Mount targets across multiple AZs
  mount_targets = {
    "ap-northeast-2a" = {
      subnet_id       = "subnet-0a1b2c3d4e5f6789a"
      security_groups = ["sg-0123456789abcdef0"]
    }
    "ap-northeast-2b" = {
      subnet_id       = "subnet-0b2c3d4e5f6789abc"
      security_groups = ["sg-0123456789abcdef0"]
    }
    "ap-northeast-2c" = {
      subnet_id       = "subnet-0c3d4e5f6789abcde"
      security_groups = ["sg-0123456789abcdef0"]
    }
  }

  # Access Points configuration
  access_points = {
    # Server configuration files Access Point
    server_config = {
      name = "beta-gameserver-config"
      posix_user = {
        gid = 2000
        uid = 2000
      }
      root_directory = {
        path = "/server/config"
        creation_info = {
          owner_gid   = 2000
          owner_uid   = 2000
          permissions = "755"
        }
      }
      tags = {
        Purpose     = "Server configuration directory"
        Component   = "server-config"
        Environment = var.environment
      }
    }

    # Game assets Access Point
    game_assets = {
      name = "beta-gameserver-assets"
      posix_user = {
        gid = 2000
        uid = 2000
      }
      root_directory = {
        path = "/server/assets"
        creation_info = {
          owner_gid   = 2000
          owner_uid   = 2000
          permissions = "755"
        }
      }
      tags = {
        Purpose     = "Game assets directory"
        Component   = "game-assets"
        Environment = var.environment
      }
    }

    # Player data Access Point
    player_data = {
      name = "beta-gameserver-playerdata"
      posix_user = {
        gid = 2000
        uid = 2000
      }
      root_directory = {
        path = "/server/playerdata"
        creation_info = {
          owner_gid   = 2000
          owner_uid   = 2000
          permissions = "750"
        }
      }
      tags = {
        Purpose     = "Player data directory"
        Component   = "player-data"
        Environment = var.environment
      }
    }
  }

  # Enable backup policy
  enable_backup_policy = true

  tags = {
    Environment = var.environment
    Project     = var.project
    Terraform   = var.terraform
    Name        = var.beta_gameserver_efs
  }
}

Using EFS in Kubernetes

PersistentVolume and PersistentVolumeClaim Configuration

apiVersion: v1
kind: PersistentVolume
metadata:
  name: beta-gameserver-mysql-pv
spec:
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  storageClassName: efs-sc
  csi:
    driver: efs.csi.aws.com
    volumeHandle: fs-0e63cfa4272bcd819::fsap-0a1b2c3d4e5f67890
    volumeAttributes:
      path: "/mysql-data"
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: beta-gameserver-mysql-pvc
  namespace: gameserver
spec:
  storageClassName: efs-sc
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 10Gi
  volumeName: beta-gameserver-mysql-pv

MySQL Deployment Example

apiVersion: v1
kind: Service
metadata:
  name: beta-gameserver-mysql
  namespace: gameserver
spec:
  type: ClusterIP
  ports:
  - port: 3306
    targetPort: 3306
    protocol: TCP
  selector:
    app: beta-gameserver-mysql
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: beta-gameserver-mysql
  namespace: gameserver
  labels:
    app: beta-gameserver-mysql
spec:
  replicas: 1
  selector:
    matchLabels:
      app: beta-gameserver-mysql
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: beta-gameserver-mysql
    spec:
      nodeSelector:
        eks.amazonaws.com/nodegroup: GameServerNodeGroup-MainNodes
      containers:
        - image: mysql:8.0
          name: mysql
          env:
            - name: MYSQL_ROOT_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: mysql-secrets
                  key: root-password
            - name: MYSQL_DATABASE
              value: gameserver_db
          ports:
            - containerPort: 3306
              protocol: TCP
              name: mysql
          resources:
            requests:
              cpu: 200m
              memory: 512Mi
            limits:
              cpu: 1000m
              memory: 2048Mi
          volumeMounts:
            - name: mysql-storage
              mountPath: /var/lib/mysql
      volumes:
        - name: mysql-storage
          persistentVolumeClaim:
            claimName: beta-gameserver-mysql-pvc

Understanding volumeAttributes.path and Access Points

volumeHandle Configuration Methods

The volumeHandle can be configured in the following ways:

Basic Format: fs-xxxxxxxxx
- Specifies only the EFS file system ID
- Provides access to the root directory of the file system
With Access Point: fs-xxxxxxxxx::fsap-yyyyyyyy
- Specifies both EFS file system ID and Access Point ID
- Root path is restricted to the specific directory defined in the Access Point

Role of volumeAttributes.path

volumeAttributes.path specifies the particular path within the EFS file system to mount:

csi:
  driver: efs.csi.aws.com
  volumeHandle: fs-0e63cfa4272bcd819
  volumeAttributes:
    path: "/mysql-data"  # Mounts the /mysql-data directory within EFS

Access Point vs volumeAttributes.path

Method	Advantages	Use Cases
Access Point	Strong security and permission control	Production environments requiring strict access control
volumeAttributes.path	Simple path specification, high flexibility	Development environments, simple shared storage
Combined Usage	Basic permissions via Access Point + detailed directory specification via path	Complex applications requiring both security and flexibility

Practical Usage Examples

Security-enhanced approach using Access Point:

apiVersion: v1
kind: PersistentVolume
metadata:
  name: secure-data-pv
spec:
  capacity:
    storage: 5Gi
  accessModes:
    - ReadWriteMany
  csi:
    driver: efs.csi.aws.com
    volumeHandle: fs-0e63cfa4272bcd819::fsap-0a1b2c3d4e5f67890  # Using Access Point
    # volumeAttributes.path omitted (path controlled by Access Point)

Simple path specification approach:

apiVersion: v1
kind: PersistentVolume
metadata:
  name: shared-logs-pv
spec:
  capacity:
    storage: 2Gi
  accessModes:
    - ReadWriteMany
  csi:
    driver: efs.csi.aws.com
    volumeHandle: fs-0e63cfa4272bcd819  # File system ID only
    volumeAttributes:
      path: "/shared/logs"  # Specific directory specification

Security and Optimization Considerations

Security Settings

Encryption at Rest: Enable KMS encryption for stored data
Encryption in Transit: Configure TLS encryption
IAM Policies: Implement fine-grained access control
Security Groups: Restrict network access appropriately

Performance Optimization

Performance Mode: Choose between General Purpose vs Max I/O
Throughput Mode: Configure Bursting vs Provisioned
Regional Distribution: Distribute mount targets across regions

Cost Optimization

Storage Classes: Configure Standard vs Infrequent Access
Backup Policies: Set appropriate backup policies
Resource Cleanup: Remove unused Access Points

Best Practices

1. Access Point Strategy

Create separate Access Points for different application components
Use appropriate POSIX permissions for each Access Point
Implement principle of least privilege

2. Performance Tuning

# Example performance configuration
performance_mode = "generalPurpose"  # or "maxIO" for high IOPS
throughput_mode  = "provisioned"     # or "bursting"
provisioned_throughput_in_mibps = 100

3. Monitoring and Alerting

Monitor file system utilization
Set up CloudWatch alarms for performance metrics
Track access patterns and optimize accordingly

4. Backup and Recovery

# Enable automatic backups
enable_backup_policy = true

# Configure backup vault if needed
backup_vault_name = "efs-backup-vault"

Troubleshooting Common Issues

Mount Issues

Permission Denied: Check Security Groups and IAM policies
Timeout Issues: Verify network connectivity and mount target availability
Performance Issues: Review performance mode and throughput settings

Kubernetes-specific Issues

CSI Driver: Ensure AWS EFS CSI driver is installed
Node Permissions: Verify EKS node IAM roles have required permissions
Storage Class: Confirm proper StorageClass configuration

Conclusion

AWS EFS combined with Kubernetes provides a scalable and reliable persistent storage solution.

By leveraging Access Point functionality, you can create isolated environments for each application while maintaining strong security controls.

The configuration outlined in this guide enables you to build stable and scalable storage infrastructure in your Kubernetes environment.

Through the appropriate combination of volumeAttributes.path and Access Points, you can achieve both security and flexibility.

EFS has evolved beyond simple file sharing to become an essential data management solution in modern container environments.

With continuous monitoring and optimization, you can achieve even more efficient operations.

somaz v3.1.2

AWS Elastic File System (EFS) with Kubernetes - Complete Implementation Guide

Overview

What is EFS?

EFS vs Other AWS Storage Services

When to Use EFS

Suitable Use Cases

Unsuitable Use Cases

Understanding EFS and Access Points

Key Features of EFS

Role of Access Points

EFS Configuration with Terraform

Using EFS in Kubernetes

PersistentVolume and PersistentVolumeClaim Configuration

MySQL Deployment Example

Understanding volumeAttributes.path and Access Points

volumeHandle Configuration Methods

Role of volumeAttributes.path

Access Point vs volumeAttributes.path

Practical Usage Examples

Security-enhanced approach using Access Point:

Simple path specification approach:

Security and Optimization Considerations

Security Settings

Performance Optimization

Cost Optimization

Best Practices

1. Access Point Strategy

2. Performance Tuning

3. Monitoring and Alerting

4. Backup and Recovery

Troubleshooting Common Issues

Mount Issues

Kubernetes-specific Issues

Conclusion

References

TLS Handshake and Certificate Architecture - A Deep Dive into HTTPS Security

Somaz

Comments

AWS Elastic File System (EFS) with Kubernetes - Complete Implementation Guide

Overview

What is EFS?

EFS vs Other AWS Storage Services

When to Use EFS

Suitable Use Cases

Unsuitable Use Cases

Understanding EFS and Access Points

Key Features of EFS

Role of Access Points

EFS Configuration with Terraform

Using EFS in Kubernetes

PersistentVolume and PersistentVolumeClaim Configuration

MySQL Deployment Example

Understanding volumeAttributes.path and Access Points

volumeHandle Configuration Methods

Role of volumeAttributes.path

Access Point vs volumeAttributes.path

Practical Usage Examples

Security-enhanced approach using Access Point:

Simple path specification approach:

Security and Optimization Considerations

Security Settings

Performance Optimization

Cost Optimization

Best Practices

1. Access Point Strategy

2. Performance Tuning

3. Monitoring and Alerting

4. Backup and Recovery

Troubleshooting Common Issues

Mount Issues

Kubernetes-specific Issues

Conclusion

References

TLS Handshake and Certificate Architecture - A Deep Dive into HTTPS Security

Share

Somaz

Comments
