Deep Dive into OpenStack Placement

Understanding OpenStack's Resource Management Service

Featured image


Understanding OpenStack Placement

Placement is OpenStack’s resource management service that provides a centralized system for tracking and managing physical and virtual resources in the cloud. It was introduced in the Newton release and has evolved into a crucial component since the Stein version, working closely with Nova and other OpenStack services.


What is Placement?


The Resource Management Layer

Placement serves as the central resource manager in OpenStack, providing essential functionality:

By centralizing resource management, Placement enables optimal resource utilization and efficient scheduling across the OpenStack cloud.

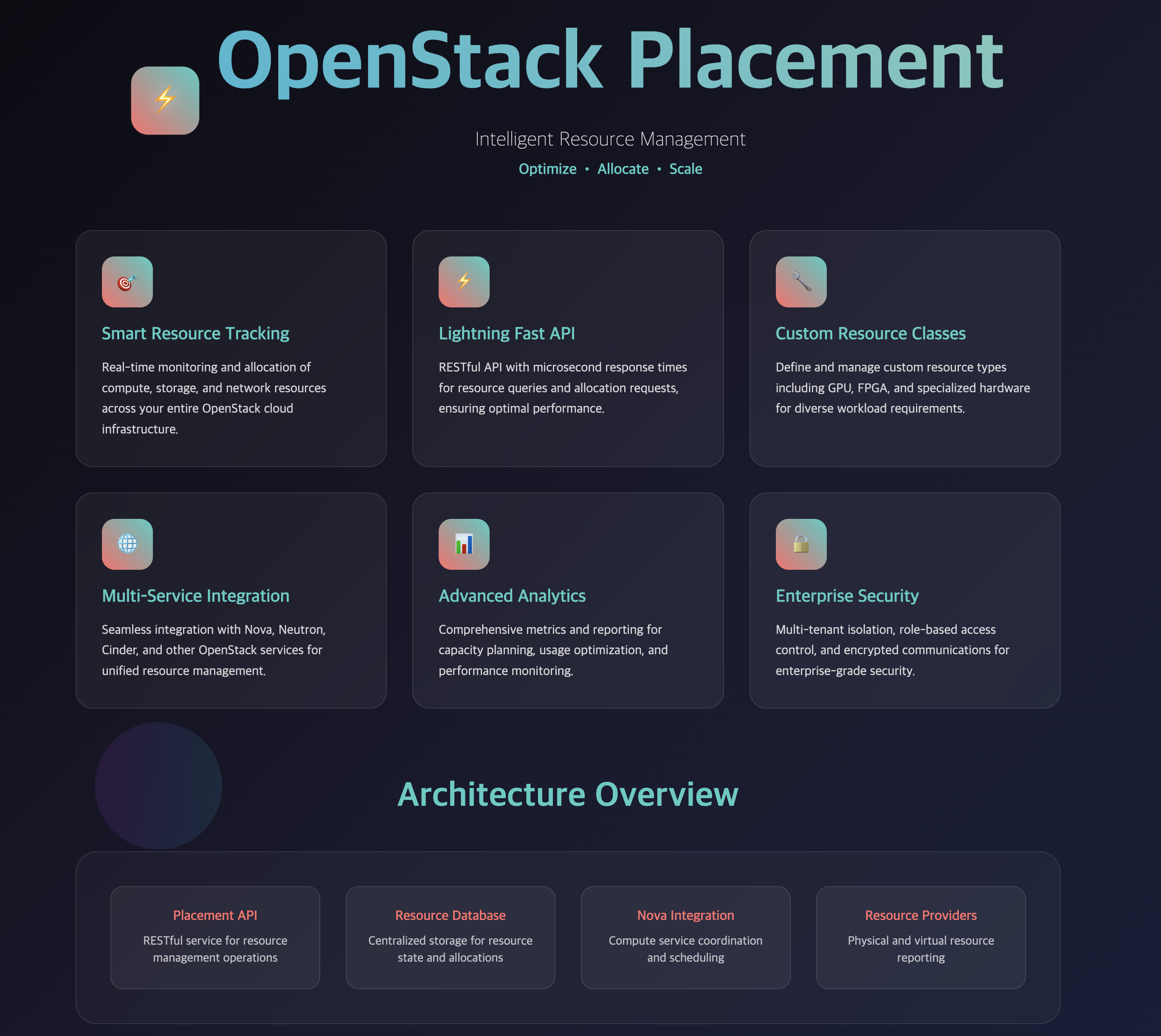

Placement Architecture Overview (Diagram Description)

graph LR A[OpenStack Placement] A --> B[Core Services] A --> C[Resource Types] A --> D[Integration Points] A --> E[Management Features] B --> B1[Resource Tracking] B --> B2[Allocation Management] B --> B3[API Services] B --> B4[Database] C --> C1[Compute Resources] C --> C2[Network Resources] C --> C3[Storage Resources] D --> D1[Nova Integration] D --> D2[Neutron Integration] D --> D3[Cinder Integration] E --> E1[Resource Classes] E --> E2[Allocation Policies] E --> E3[Usage Monitoring] style A stroke:#333,stroke-width:1px,fill:#f5f5f5 style B stroke:#333,stroke-width:1px,fill:#a5d6a7 style C stroke:#333,stroke-width:1px,fill:#64b5f6 style D stroke:#333,stroke-width:1px,fill:#ffcc80 style E stroke:#333,stroke-width:1px,fill:#ce93d8


Placement Architecture and Components

Placement employs a modular architecture with a central API server and database that work together to provide comprehensive resource management services.

This design enables efficient resource tracking and allocation across the OpenStack cloud.


Core Components

Component Role Description
Placement API Resource Management Service
  • Provides RESTful API for resource management
  • Processes resource allocation requests
  • Maintains resource state in the database
  • Validates and authorizes resource operations
Placement Database Resource State Storage
  • Stores resource provider information
  • Maintains allocation records
  • Tracks resource usage and availability
  • Manages resource class definitions
Nova Integration Compute Resource Management
  • Coordinates with Nova-compute for resource updates
  • Supports Nova-scheduler in node selection
  • Manages instance resource allocation
  • Provides health check functionality


Resource Management Flow

sequenceDiagram participant Nova as "Nova Service" participant Placement as "Placement API" participant DB as "Placement DB" participant Compute as "Compute Node" Nova->>Placement: Request Resource Allocation Placement->>DB: Check Resource Availability DB-->>Placement: Return Available Resources Placement-->>Nova: Provide Allocation Options Nova->>Compute: Deploy Instance Compute->>Placement: Update Resource Usage Placement->>DB: Update Resource State


Resource Types and Classes

Placement manages various types of resources:

Each resource type is managed through standardized resource classes, enabling consistent tracking and allocation across the cloud.


Key Features and Capabilities

Placement provides a comprehensive set of features for resource management, enabling efficient allocation, tracking, and optimization of cloud resources.


Resource Management Features

Feature Description
Resource Tracking
  • Real-time monitoring of resource usage and availability
  • Support for both physical and virtual resources
  • Dynamic updates from compute nodes
  • Comprehensive resource state management
Allocation Management
  • Efficient resource allocation for new instances
  • Support for resource reservation and quotas
  • Dynamic resource reallocation
  • Multi-tenant resource isolation
Policy Management
  • Custom resource allocation policies
  • Project-specific resource limits
  • Workload-specific optimization rules
  • Quality of Service (QoS) policies


Integration with OpenStack Services

Placement integrates with various OpenStack services:

This integration enables comprehensive resource management across the entire OpenStack cloud.


API Usage and CLI Examples

Understanding how to interact with Placement through its API and CLI is essential for effective resource management. Here are practical examples and common usage patterns.


Placement CLI Commands

Command Description
openstack resource provider list List all resource providers in the cloud
openstack resource provider show <uuid> Show detailed information about a specific resource provider
openstack resource class list List all available resource classes
openstack allocation candidate list Find allocation candidates for resource requirements
openstack resource provider inventory list <uuid> Show inventory for a specific resource provider


API Request Examples

Getting Resource Providers:

Creating Allocation:

Querying Allocation Candidates:


Real-World Use Cases and Scenarios

Understanding practical applications of Placement helps in designing efficient cloud architectures and solving common resource management challenges.


Common Deployment Scenarios

Scenario Challenge Placement Solution
High-Density Workloads Optimal resource allocation for microservices
  • Fine-grained resource tracking
  • Custom resource classes
  • Efficient packing algorithms
GPU Workloads Managing specialized hardware resources
  • Custom GPU resource classes
  • Hardware-specific allocation
  • Resource affinity policies
Multi-Tenant Isolation Resource isolation between tenants
  • Project-based resource limits
  • Allocation tracking per tenant
  • Usage monitoring and reporting
Edge Computing Distributed resource management
  • Geographic resource placement
  • Network-aware scheduling
  • Edge-specific resource classes


Custom Resource Class Implementation

Example of creating a custom resource class for GPU resources:


Performance Optimization and Monitoring

Optimizing Placement performance is crucial for large-scale OpenStack deployments. Here are key strategies and monitoring approaches.


Performance Optimization Strategies

Optimization Area Strategy Implementation
Database Performance Optimize database queries and indexing
  • Proper database indexing
  • Connection pooling
  • Query optimization
  • Regular maintenance
API Response Time Minimize API latency
  • API caching strategies
  • Load balancing
  • Connection optimization
  • Response compression
Resource Tracking Efficient resource updates
  • Batch updates
  • Asynchronous processing
  • Update frequency tuning
  • Delta tracking


Monitoring and Alerting

Key Metrics to Monitor:

Sample Monitoring Configuration:

# Prometheus monitoring example
- name: placement_api_latency
  expr: histogram_quantile(0.95, placement_api_request_duration_seconds)

- name: placement_db_connections
  expr: placement_database_connections_active

- name: resource_allocation_ratio
  expr: (placement_resource_allocated / placement_resource_total) * 100


Troubleshooting Common Issues

Understanding common Placement issues and their solutions helps maintain a healthy OpenStack environment.


Common Problems and Solutions

Problem Symptoms Solution
Resource Provider Registration
  • Compute nodes not appearing
  • Resource inventory missing
  • Allocation failures
  • Check nova-compute logs
  • Verify placement endpoint
  • Restart nova-compute service
  • Check network connectivity
Database Synchronization
  • Inconsistent resource data
  • Allocation mismatches
  • Scheduling failures
  • Run placement database sync
  • Check for data corruption
  • Verify database connectivity
  • Review migration logs
API Authentication
  • 401 Unauthorized errors
  • Service integration failures
  • Token validation issues
  • Check keystone configuration
  • Verify service credentials
  • Update authentication tokens
  • Review policy settings


Diagnostic Commands

Check Placement Service Health:

Debug Resource Issues:


Security and Best Practices

Implementing proper security measures and following best practices ensures a secure and efficient Placement deployment.


Security Considerations

Security Area Best Practices
API Security
  • Use HTTPS for all API communications
  • Implement proper authentication and authorization
  • Regular security token rotation
  • API rate limiting and throttling
Database Security
  • Encrypt database connections
  • Use strong database passwords
  • Implement database access controls
  • Regular database backups
Network Security
  • Secure internal network communications
  • Implement proper firewall rules
  • Use VPNs for remote access
  • Regular security audits


Operational Best Practices

Deployment Guidelines:

Capacity Planning:


Migration and Upgrade Strategies

Planning and executing Placement migrations and upgrades requires careful consideration to maintain service availability.


Upgrade Planning

Phase Activities Considerations
Pre-upgrade
  • Backup placement database
  • Test upgrade in staging
  • Review release notes
  • Plan rollback strategy
  • Service compatibility
  • Data migration requirements
  • Downtime considerations
  • Resource allocation
Upgrade
  • Stop placement services
  • Update packages
  • Run database migrations
  • Update configurations
  • Service order dependencies
  • Configuration changes
  • Database migration time
  • Service restart sequence
Post-upgrade
  • Verify service functionality
  • Test resource operations
  • Monitor performance
  • Update documentation
  • Functionality validation
  • Performance impact
  • Integration testing
  • User communication


Migration Commands

Database Migration:

# Backup placement database
mysqldump placement > placement_backup.sql

# Run database upgrade
placement-manage db upgrade

# Check migration status
placement-manage db version

# Online data migrations
placement-manage db online_data_migrations


Usage and Best Practices

Effective use of Placement requires understanding its capabilities and implementing appropriate resource management strategies. Here are key considerations and best practices for utilizing Placement effectively.


Resource Management Strategies

Strategy Description Benefits
Resource Classes Define standardized resource types for consistent management
  • Consistent resource tracking
  • Simplified allocation policies
  • Better resource utilization
Allocation Policies Implement custom policies for resource allocation
  • Optimized resource distribution
  • Workload-specific optimization
  • Improved performance
Monitoring Regular tracking of resource usage and availability
  • Proactive resource management
  • Early problem detection
  • Better capacity planning


Implementation Guidelines

For effective Placement implementation:

Following these guidelines helps ensure efficient resource management and optimal cloud performance.


Key Points

Placement Essentials
  • Core Functionality
    - Centralized resource management for OpenStack clouds
    - Real-time resource tracking and allocation
    - Integration with Nova and other OpenStack services
    - Support for custom resource classes and policies
  • Architecture
    - RESTful API for resource management
    - Database for resource state storage
    - Integration with Nova components
    - Support for various resource types
  • Key Features
    - Comprehensive resource tracking
    - Efficient allocation management
    - Custom policy support
    - Service integration capabilities
  • Best Practices
    - Implement proper monitoring and alerting
    - Use security best practices
    - Plan for scalability and performance
    - Maintain comprehensive documentation
