Introduction to MinIO - High Performance Object Storage

A comprehensive guide to MinIO installation and usage

Featured image


Understanding MinIO Object Storage

MinIO is a high-performance, Kubernetes-native object storage system designed to address modern cloud-scale data challenges. It delivers S3-compatible storage with exceptional performance, scalability, and resilience while maintaining simplicity for both developers and administrators. Perfect for cloud-native applications, MinIO serves as the foundation for data lakes, databases, and machine learning workloads.

What is MinIO?

The Evolution of Enterprise Storage

Traditional block and file storage systems were designed in an era before cloud computing, big data, and containerization became mainstream. MinIO represents a new generation of storage platforms specifically designed for these modern workloads:

  • Cloud-Native Architecture: Built from the ground up for modern distributed environments
  • S3 Compatibility: Full implementation of the de facto standard API for object storage
  • Kubernetes Integration: First-class citizen in container orchestration environments
  • Software-Defined: Runs on commodity hardware without special requirements

MinIO bridges the gap between cloud-based object storage services and on-premises infrastructure, providing consistent APIs and performance characteristics regardless of deployment environment.

graph LR A[MinIO Object Storage] A --> B[Core Features] A --> C[Architecture] A --> D[Integration] A --> E[Security Features] B --> B1[S3 Compatibility] B --> B2[High Performance] B --> B3[Scalability] B --> B4[Erasure Coding] C --> C1[Distributed Mode] C --> C2[Standalone Mode] C --> C3[Gateway Mode] D --> D1[Kubernetes Native] D --> D2[S3 Ecosystem] D --> D3[CI/CD Systems] E --> E1[Encryption] E --> E2[Identity Management] E --> E3[Policy Enforcement] %% 스타일은 반드시 마지막에 깔끔하게 정의 style A stroke:#333,stroke-width:1px,fill:#f5f5f5 style B stroke:#333,stroke-width:1px,fill:#a5d6a7 style C stroke:#333,stroke-width:1px,fill:#64b5f6 style D stroke:#333,stroke-width:1px,fill:#ffcc80 style E stroke:#333,stroke-width:1px,fill:#ce93d8


Key Features and Architecture

MinIO's architecture emphasizes simplicity, performance, and resilience. By focusing on a specific set of design principles, MinIO achieves exceptional throughput and scalability while maintaining compatibility with the S3 API ecosystem.

Core Features

Feature Description
Scalability
  • Horizontal scaling with multiple MinIO servers in distributed mode
  • Support for clusters with hundreds of nodes and thousands of drives
  • Automatic distribution of data across all available nodes
  • Linear performance scaling with additional resources
High Availability
  • Erasure coding for data protection (N+K parity configuration)
  • Bitrot protection using checksums to detect silent data corruption
  • Automatic healing of damaged objects when corruption is detected
  • Continuous operation even during partial infrastructure failures
Performance
  • Read/write speeds up to multiple GB/s depending on hardware
  • Low latency for small object operations
  • Ability to handle thousands of concurrent requests
  • Optimized for both small and large objects
S3 Compatibility
  • Full implementation of Amazon S3 API
  • Support for S3 Select for server-side data filtering
  • Compatible with existing S3 tools, SDKs, and applications
  • Support for versioning, object lock, and lifecycle management

Architecture Components

MinIO Distributed Architecture

MinIO's distributed system consists of several key components:

  • MinIO Server: Core component handling object storage operations
  • Erasure Sets: Groups of drives across which data is striped with parity
  • IAM Subsystem: Identity and access management service
  • Console: Web-based management interface
  • MinIO Client (mc): Command-line tool for interacting with MinIO servers
graph TD A[Client Applications] --> B[Load Balancer] B --> C[MinIO Server Nodes] C --> D[Local Storage Drives] E[MinIO Console] --> C F[MinIO Client] --> C style A stroke:#333,stroke-width:1px,fill:#f5f5f5 style B stroke:#333,stroke-width:1px,fill:#a5d6a7 style C stroke:#333,stroke-width:1px,fill:#64b5f6 style D stroke:#333,stroke-width:1px,fill:#ffcc80 style E stroke:#333,stroke-width:1px,fill:#ce93d8 style F stroke:#333,stroke-width:1px,fill:#ce93d8

Security Features

Comprehensive Security Model

MinIO includes extensive security capabilities:

  • Encryption: Server-side encryption (SSE-S3, SSE-C, SSE-KMS) and client-side encryption
  • TLS: Transport Layer Security for all communications
  • Identity Management: Built-in IAM or integration with external identity providers
  • Policy-Based Access Control: Fine-grained permissions using S3 policy syntax
  • Key Management: Integration with external key management services (KMS)


Deployment and Installation Options

MinIO offers flexible deployment options to accommodate various infrastructure environments and requirements. Whether you're deploying on Kubernetes, bare metal servers, or virtual machines, MinIO provides streamlined installation methods.

Kubernetes Deployment with Helm

Helm Installation Process

Helm provides a streamlined method for deploying MinIO on Kubernetes clusters:

  1. Add the MinIO Helm repository
  2. Configure deployment parameters
  3. Install the MinIO chart
  4. Configure access to the MinIO services

Adding MinIO Helm Repository

# Add the official MinIO Helm repository
helm repo add minio https://charts.min.io/

# Verify the repository was added
helm repo list
NAME    URL
minio   https://charts.min.io/

Standard Installation

Deployment Type Helm Command
Production Setup
helm install my-minio minio/minio \
  --namespace minio \
  --create-namespace \
  --set resources.requests.memory=1Gi \
  --set replicas=4 \
  --set persistence.size=500Gi \
  --set accessKey=rootuser,secretKey=rootpass123
Development Setup
helm install --set resources.requests.memory=512Mi \
  --set replicas=1 \
  --set persistence.enabled=false \
  --set mode=standalone \
  --set rootUser=rootuser,rootPassword=rootpass123 \
  --generate-name minio/minio \
  --namespace minio \
  --create-namespace

Verifying Installation

# Check the status of the MinIO deployment
kubectl get po,svc,deploy -n minio

# Output should include pods, services and deployments

Configuring Service Access

Advanced Configuration Options

Production-Ready Configurations

For production environments, consider these additional configuration options:

  • Persistent Volumes: Configure storage class and volume size based on workload requirements
  • Resource Limits: Specify CPU and memory limits according to expected load
  • High Availability: Configure multiple replicas with proper erasure coding settings
  • TLS: Enable TLS with proper certificates for secure communication
  • Custom Domain: Configure ingress with custom domain names


Using MinIO Client (mc)

The MinIO Client (mc) is a powerful command-line tool for interacting with MinIO servers and other S3-compatible services. It provides a unified interface for file operations across different storage systems.

Installation and Configuration

Platform Installation Command
MacOS brew install minio/stable/mc
Linux wget https://dl.min.io/client/mc/release/linux-amd64/mc && chmod +x mc && sudo mv mc /usr/local/bin/
Windows wget https://dl.min.io/client/mc/release/windows-amd64/mc.exe -OutFile mc.exe

Configuring Access to MinIO Server

# Set up an alias for your MinIO server
mc alias set myminio http://<server-ip>:<port> <access-key> <secret-key>

# Example
mc alias set myminio http://10.0.71.51:31067 rootuser rootpass123

# Verify the connection
mc admin info myminio

Basic Operations

Common MinIO Client Commands

The mc tool supports a wide range of operations similar to standard Unix commands:

Operation Command Description
Create Bucket mc mb myminio/bucket-name Creates a new bucket on the MinIO server
List Buckets mc ls myminio Lists all buckets on the specified MinIO server
Upload File mc cp file.txt myminio/bucket-name/ Copies a file from local filesystem to MinIO bucket
Download File mc cp myminio/bucket-name/file.txt ./ Copies a file from MinIO bucket to local filesystem
Mirror Directory mc mirror local-dir/ myminio/bucket-name/ Synchronizes contents of local directory to MinIO bucket
Remove Object mc rm myminio/bucket-name/file.txt Deletes an object from a MinIO bucket

Advanced Operations

# Set bucket policy (public read)
mc policy set download myminio/public-bucket

# Enable bucket versioning
mc version enable myminio/versioned-bucket

# Create service account
mc admin user svcacct add myminio/ rootuser

# Monitor MinIO events in real-time
mc watch myminio/bucket-name

# Find objects by pattern
mc find myminio/bucket-name --name "*.log"


Web UI Console

The MinIO Console provides a user-friendly web interface for managing your MinIO deployment. It offers a comprehensive set of features for monitoring, managing buckets, and configuring access controls.

Console Features

Key Management Capabilities

The MinIO Console includes:

  • Dashboard Overview: Metrics and status information
  • Bucket Management: Create, configure, and browse buckets
  • Identity Management: Create and manage users, groups, and policies
  • Monitoring: Performance and health metrics
  • Event Notifications: Configure bucket notifications
  • Replication: Set up and manage bucket replication

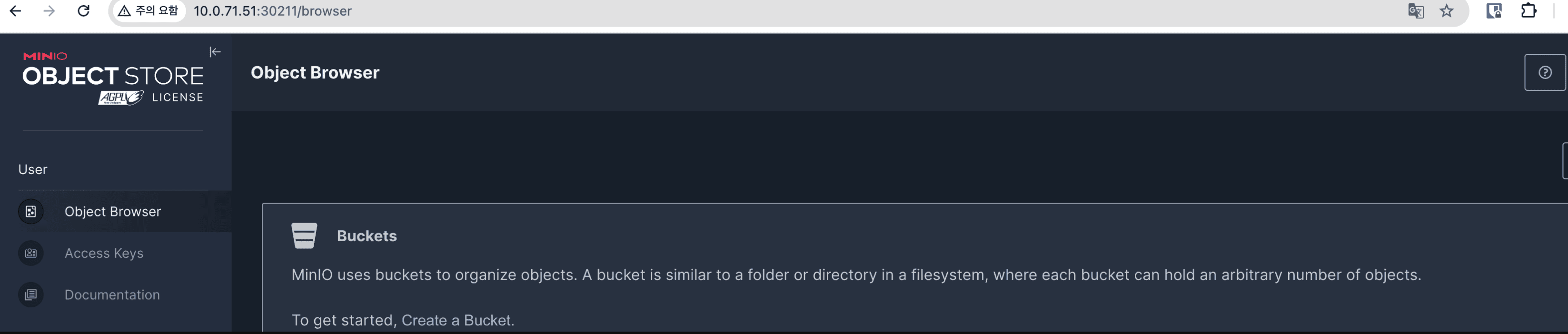

MinIO Console Interface
MinIO Console Dashboard showing bucket management and usage statistics

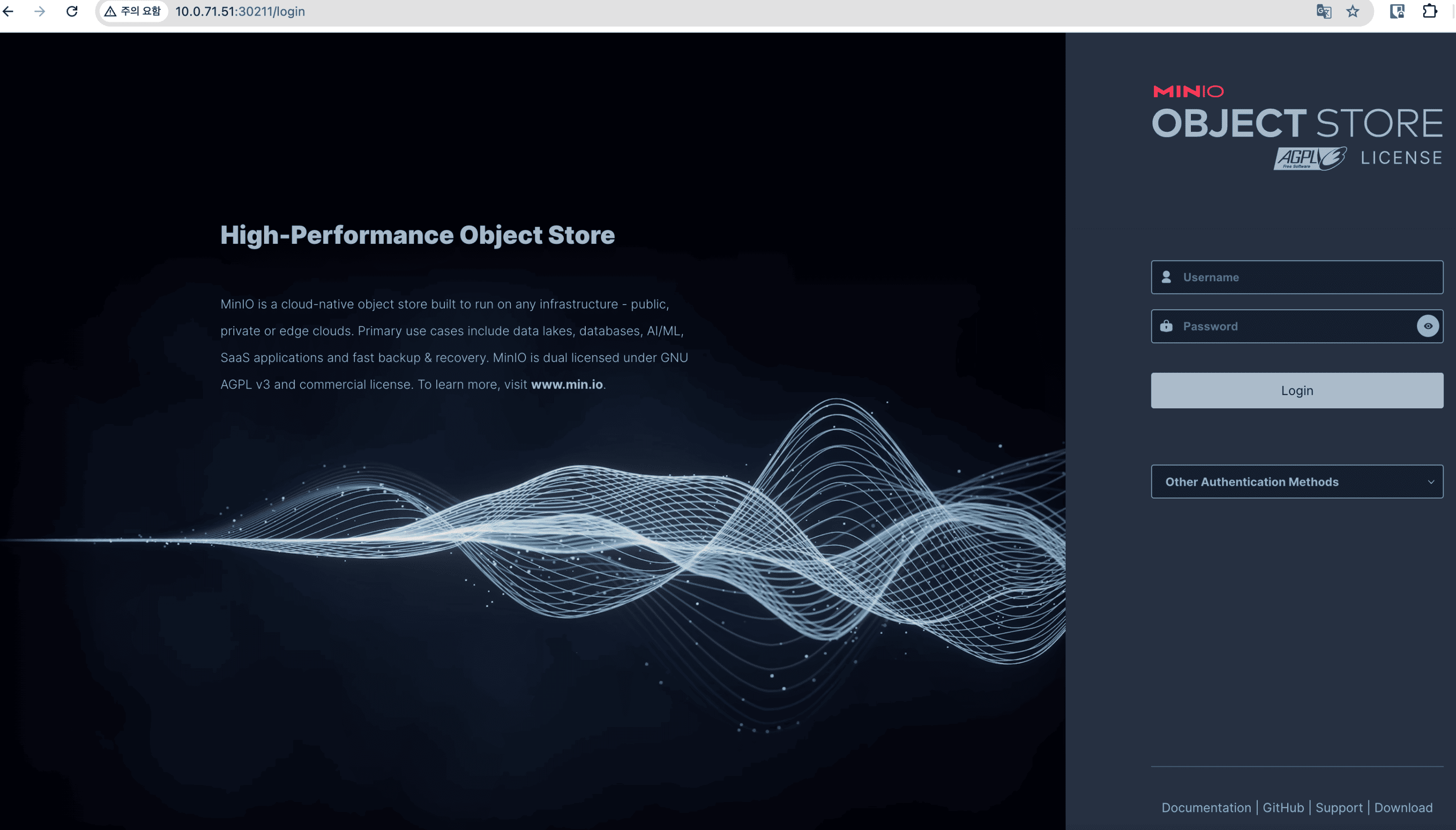

MinIO Console Login
MinIO Console Login Screen


Integration with Applications

MinIO's S3-compatibility enables seamless integration with a wide range of applications and frameworks that support the S3 API. This allows organizations to leverage the existing ecosystem of S3-compatible tools while maintaining control over their storage infrastructure.

Common Integration Scenarios

graph TD A[MinIO Object Storage] --> B[Data Analytics] A --> C[Content Delivery] A --> D[Backup & Archive] A --> E[AI/ML Workflows] B --> B1[Spark/Hadoop] B --> B2[Presto/Trino] B --> B3[Snowflake] C --> C1[Media Servers] C --> C2[Web Applications] C --> C3[Document Management] D --> D1[Velero] D --> D2[Veeam] D --> D3[Custom Scripts] E --> E1[TensorFlow] E --> E2[PyTorch] E --> E3[MLflow] style A stroke:#333,stroke-width:1px,fill:#f5f5f5 style B stroke:#333,stroke-width:1px,fill:#a5d6a7 style C stroke:#333,stroke-width:1px,fill:#64b5f6 style D stroke:#333,stroke-width:1px,fill:#ffcc80 style E stroke:#333,stroke-width:1px,fill:#ce93d8

Integration Examples

Application Integration Approach
TensorFlow
import tensorflow as tf
import boto3
from botocore.client import Config

s3 = boto3.resource('s3',
    endpoint_url='http://minio-server:9000',
    aws_access_key_id='accesskey',
    aws_secret_access_key='secretkey',
    config=Config(signature_version='s3v4'),
    region_name='us-east-1')

# Now use s3 resource with TensorFlow datasets
tf.data.Dataset.list_files("s3://bucket-name/train-data/*")
Backup Script
#!/bin/bash
# Backup script using aws-cli with MinIO
AWS_ACCESS_KEY_ID=accesskey
AWS_SECRET_ACCESS_KEY=secretkey
ENDPOINT="http://minio-server:9000"

# Backup database
mysqldump -u root -p database > backup.sql

# Upload to MinIO
aws --endpoint-url=$ENDPOINT s3 cp \
    backup.sql s3://backups/database/$(date +%Y-%m-%d)/backup.sql

# Clean up local file
rm backup.sql


Key Points

💡 MinIO Essentials
  • Core Features
    - S3-compatible API provides seamless integration with existing tools
    - High-performance architecture designed for modern workloads
    - Distributed design for scalability and resilience
    - Erasure coding for data protection without traditional RAID
  • Deployment Options
    - Kubernetes-native deployment via Helm for cloud environments
    - Standalone mode for development and smaller workloads
    - Docker containers for simplified deployment
    - Bare metal installation for maximum performance
  • Management Tools
    - Powerful mc command-line tool for operations and administration
    - Web-based console for visual management
    - Comprehensive monitoring and alerting capabilities
    - RESTful API for automation and integration
