BGP (Border Gateway Protocol) Complete Guide - Internet's Core Routing Protocol

From AS concepts to advanced BGP operations, comprehensive understanding of internet routing infrastructure

Overview

Understanding BGP (Border Gateway Protocol) is fundamental for anyone working with internet routing and large-scale networks. BGP is the path vector-based routing protocol used to exchange and select routes between Autonomous Systems (AS) on the internet.

This article systematically explains core BGP concepts with practical examples, covering AS fundamentals, internal vs external routing protocols, BGP path attributes, and real-world implementation strategies for network engineers.

Key Concepts Covered

AS (Autonomous System) fundamentals and concepts
BGP protocol architecture and operation
iBGP vs eBGP differences and use cases
Path attributes and route selection algorithms
BGP security and troubleshooting
Multi-homing and enterprise deployment strategies

Autonomous System (AS) Fundamentals

Understanding the concept of Autonomous Systems is essential for comprehending BGP and internet routing architecture.

What is an Autonomous System?

An Autonomous System (AS) is a collection of routers under the control of a single network administrator, operating under a unified management policy, or configured with a single routing strategy. Each AS represents a distinct administrative domain within the internet.

AS numbers are globally unique identifiers assigned by Regional Internet Registries (RIRs) to organizations that manage their own routing policies.

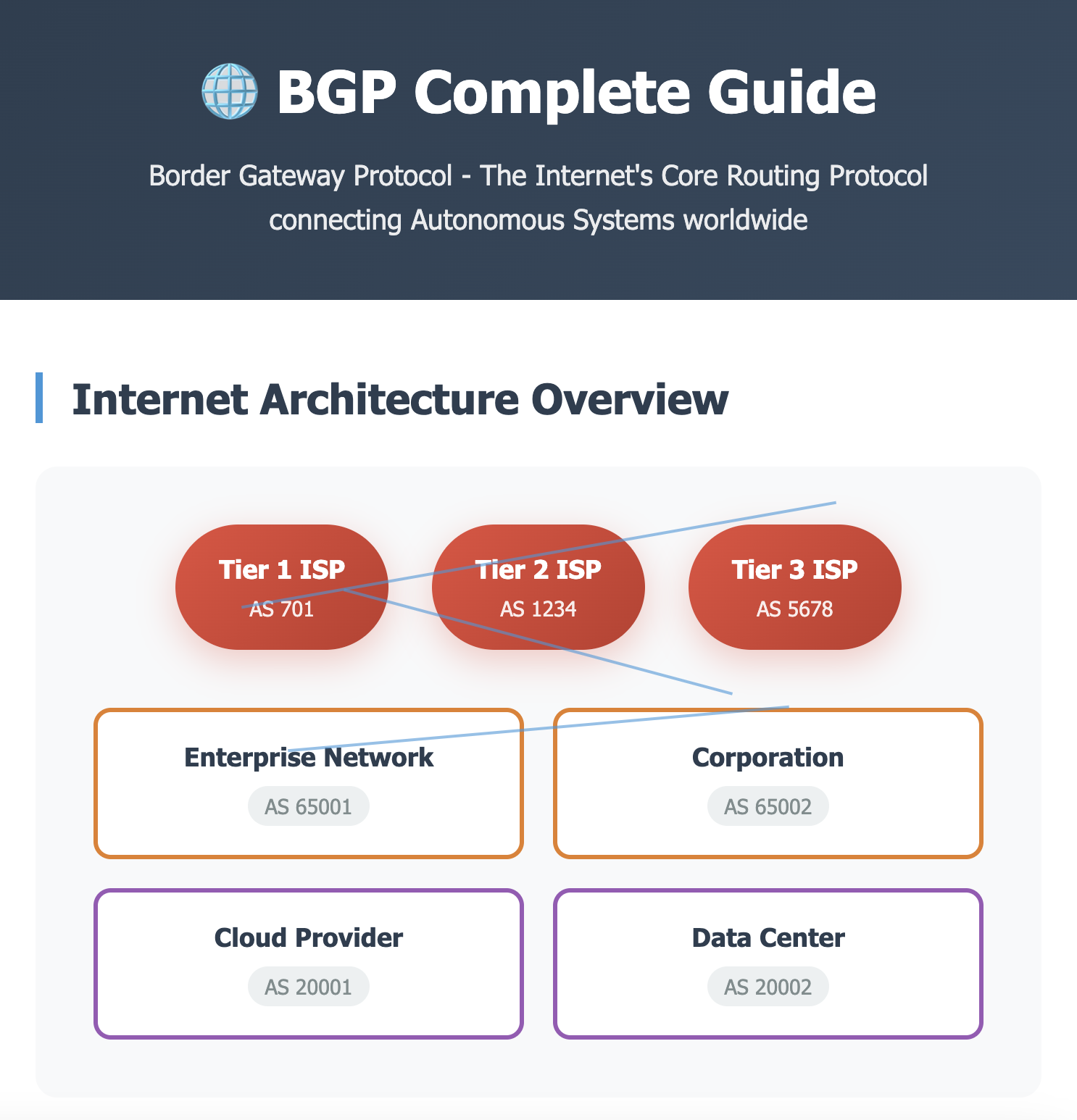

AS in Internet Architecture

graph TB subgraph "Internet Core" Tier1[Tier 1 ISP
AS 701] Tier2[Tier 2 ISP
AS 1234] Tier3[Tier 3 ISP
AS 5678] end subgraph "Enterprise Networks" Corp1[Corporation A
AS 10001] Corp2[Corporation B
AS 10002] Corp3[Corporation C
AS 10003] end subgraph "Data Centers" DC1[Cloud Provider
AS 20001] DC2[Hosting Company
AS 20002] end Tier1 --> Tier2 Tier2 --> Tier3 Tier3 --> Corp1 Tier3 --> Corp2 Tier3 --> Corp3 Tier2 --> DC1 Tier2 --> DC2 style Tier1 fill:#e3f2fd style Tier2 fill:#e8f5e8 style Tier3 fill:#fff3e0 style Corp1 fill:#fce4ec style DC1 fill:#f3e5f5

Interior vs Exterior Routing Protocols

Protocol Type	Purpose and Scope	Common Examples
Interior Gateway Protocol (IGP)	Routing within a single AS	RIP (Routing Information Protocol) IGRP (Interior Gateway Routing Protocol) EIGRP (Enhanced Interior Gateway Routing Protocol) OSPF (Open Shortest Path First)
Exterior Gateway Protocol (EGP)	Routing between different ASes	EGP (Exterior Gateway Protocol) - Legacy BGP (Border Gateway Protocol) - Current Standard

AS Boundary Router (ASBR) Role

ASBRs serve as gateways between Autonomous Systems, managing external routing information and policy enforcement:

# ASBR configuration example (Cisco IOS)
router bgp 65001
 neighbor 192.168.1.1 remote-as 65002
 neighbor 192.168.1.1 description "External AS 65002"

 # Route redistribution from IGP to BGP
 redistribute ospf 1 route-map OSPF_TO_BGP

 # Route filtering and policy application
 neighbor 192.168.1.1 route-map FILTER_IN in
 neighbor 192.168.1.1 route-map FILTER_OUT out

ASBR Key Functions:

Route Exchange: Advertise internal routes to external ASes
Policy Enforcement: Apply routing policies and filters
Security: Implement access controls and authentication
Monitoring: Track external routing changes and performance

BGP Protocol Architecture

Understanding BGP’s fundamental architecture and operation is crucial for effective network design and troubleshooting.

BGP Protocol Characteristics

graph TB subgraph "BGP Protocol Stack" Application[BGP Application Layer] TCP[TCP Layer - Port 179] IP[IP Layer] DataLink[Data Link Layer] end subgraph "BGP Message Types" Open[Open Message
Session Establishment] Update[Update Message
Route Advertisement] Keepalive[Keepalive Message
Connection Maintenance] Notification[Notification Message
Error Handling] end subgraph "BGP Operation" PeerSetup[Peer Relationship Setup] RouteExchange[Route Information Exchange] PathSelection[Path Selection Algorithm] FIBUpdate[Forwarding Table Update] end Application --> TCP TCP --> IP IP --> DataLink Open --> PeerSetup Update --> RouteExchange Keepalive --> PeerSetup Notification --> PeerSetup RouteExchange --> PathSelection PathSelection --> FIBUpdate style Application fill:#e8f5e8 style TCP fill:#e3f2fd style Update fill:#fff8e1

BGP vs IGP Comparison

Aspect	BGP (Border Gateway Protocol)	IGP (OSPF, EIGRP, etc.)
Scope	Inter-AS routing (between Autonomous Systems)	Intra-AS routing (within single Autonomous System)
Protocol Type	Path Vector Protocol	Link-State or Distance Vector
Route Selection	Policy-based with Path Attributes	Metric-based (cost, bandwidth, delay)
Convergence Speed	Slow (policy evaluation)	Fast (automatic metric calculation)
Scale	Internet-scale (millions of routes)	Network-scale (thousands of routes)

BGP Message Types and Operation

BGP operates using four essential message types exchanged between peers:

# BGP message types and their purposes

# 1. OPEN Message - Session establishment
BGP OPEN Message:
  Version: 4
  My AS: 65001
  Hold Time: 180
  BGP Identifier: 192.168.1.1
  Optional Parameters

# 2. UPDATE Message - Route advertisement
BGP UPDATE Message:
  Withdrawn Routes: (empty)
  Path Attributes: ORIGIN, AS_PATH, NEXT_HOP, LOCAL_PREF
  NLRI: 10.0.0.0/8, 172.16.0.0/12

# 3. KEEPALIVE Message - Connection maintenance
BGP KEEPALIVE Message:
  (Header only, no data)

# 4. NOTIFICATION Message - Error handling
BGP NOTIFICATION Message:
  Error Code: 2 (OPEN Message Error)
  Error Subcode: 1 (Unsupported Version)
  Data: (error details)

BGP Session Establishment Flow:

TCP Connection: Establish TCP connection on port 179
OPEN Exchange: Send and receive OPEN messages
Capability Negotiation: Agree on supported features
Session Establishment: BGP session becomes established
Route Exchange: Begin exchanging routing information

iBGP vs eBGP Implementation

Understanding the differences between internal and external BGP is crucial for proper network design.

iBGP (Internal BGP) Architecture

graph TB subgraph "AS 65001 - Internal BGP" Router1[Router 1
iBGP Speaker] Router2[Router 2
iBGP Speaker] Router3[Router 3
iBGP Speaker] Router4[Router 4
iBGP Speaker] subgraph "iBGP Full Mesh" Router1 -.-> Router2 Router1 -.-> Router3 Router1 -.-> Router4 Router2 -.-> Router3 Router2 -.-> Router4 Router3 -.-> Router4 end end subgraph "External Connections" AS65002[AS 65002
eBGP Peer] AS65003[AS 65003
eBGP Peer] end Router1 --> AS65002 Router2 --> AS65003 style Router1 fill:#e8f5e8 style Router2 fill:#e8f5e8 style Router3 fill:#e8f5e8 style Router4 fill:#e8f5e8 style AS65002 fill:#fff3e0 style AS65003 fill:#fff3e0

eBGP (External BGP) Architecture

graph LR subgraph "AS 65001" Router1[Router 1
eBGP Speaker] Router2[Router 2
eBGP Speaker] Router3[Router 3
iBGP Speaker] end subgraph "AS 65002" Router4[Router 4
eBGP Speaker] Router5[Router 5
iBGP Speaker] end subgraph "AS 65003" Router6[Router 6
eBGP Speaker] Router7[Router 7
iBGP Speaker] end Router1 <--> Router4 Router2 <--> Router6 Router1 -.-> Router2 Router1 -.-> Router3 Router2 -.-> Router3 Router4 -.-> Router5 Router6 -.-> Router7 style Router1 fill:#e8f5e8 style Router4 fill:#fff3e0 style Router6 fill:#fce4ec

iBGP vs eBGP Configuration Differences

# iBGP Configuration (same AS)
router bgp 65001
 neighbor 192.168.1.2 remote-as 65001    # Same AS number
 neighbor 192.168.1.2 update-source loopback0
 neighbor 192.168.1.2 next-hop-self      # Modify NEXT_HOP attribute

 # eBGP Configuration (different AS)
 router bgp 65001
 neighbor 10.0.0.2 remote-as 65002       # Different AS number
 neighbor 10.0.0.2 ebgp-multihop 2       # Allow non-direct connections
 neighbor 10.0.0.2 send-community        # Send community attributes

 # Route redistribution between iBGP and eBGP
 router bgp 65001
  redistribute connected route-map CONNECTED_TO_BGP
  redistribute ospf 1 route-map OSPF_TO_BGP

Key Differences:

AS Number: iBGP uses same AS, eBGP uses different AS
NEXT_HOP Handling: iBGP modifies NEXT_HOP, eBGP preserves it
TTL Values: iBGP TTL=255, eBGP TTL=1 (configurable)
Route Advertisement: iBGP doesn’t advertise routes learned from iBGP peers

BGP Path Attributes and Route Selection

Understanding BGP path attributes is essential for implementing routing policies and optimizing network performance.

BGP Path Attributes Overview

Attribute Type	Well-Known vs Optional	Description	Example Values
ORIGIN	Well-Known Mandatory	Route source indication	IGP (0), EGP (1), Incomplete (2)
AS_PATH	Well-Known Mandatory	List of ASes traversed	65002 65003 65004
NEXT_HOP	Well-Known Mandatory	Next hop IP address	192.168.1.1
LOCAL_PREF	Well-Known Discretionary	Local preference value	100 (default), 200 (high priority)
MED	Optional Non-Transitive	Multi-Exit Discriminator	0-4294967295
COMMUNITY	Optional Transitive	Route grouping and policy	65001:100, 65001:200

BGP Route Selection Algorithm

BGP uses a deterministic algorithm to select the best route when multiple paths exist:

# BGP Route Selection Process (Cisco IOS order)
# 1. Highest Weight (Cisco proprietary)
# 2. Highest LOCAL_PREF
# 3. Locally originated routes
# 4. Shortest AS_PATH
# 5. Lowest ORIGIN code (IGP < EGP < Incomplete)
# 6. Lowest MED
# 7. eBGP over iBGP
# 8. Lowest IGP metric to NEXT_HOP
# 9. Lowest Router ID
# 10. Lowest Neighbor IP address

# Example route selection
BGP table version is 15, local router ID is 192.168.1.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal

*> 10.0.0.0/8       192.168.1.2             0             0 65002 i
*  10.0.0.0/8       192.168.1.3             0             0 65003 65002 i
*  10.0.0.0/8       192.168.1.4             0             0 65004 65003 65002 i

Route Selection Example:

Route 1: AS_PATH length 1, LOCAL_PREF 100
Route 2: AS_PATH length 2, LOCAL_PREF 100
Route 3: AS_PATH length 3, LOCAL_PREF 100
Result: Route 1 selected (shortest AS_PATH)

Path Attribute Manipulation

# LOCAL_PREF manipulation for inbound traffic control
route-map SET_LOCAL_PREF permit 10
 match ip address prefix-list PREFERRED_ROUTES
 set local-preference 200

route-map SET_LOCAL_PREF permit 20
 set local-preference 100

# AS_PATH prepending for outbound traffic control
route-map PREPEND_AS permit 10
 set as-path prepend 65001 65001 65001

# MED manipulation for inbound traffic engineering
route-map SET_MED permit 10
 match community 65001:100
 set metric 100

route-map SET_MED permit 20
 match community 65001:200
 set metric 200

BGP Security and Best Practices

Implementing proper security measures is crucial for protecting BGP infrastructure from attacks and misconfigurations.

BGP Security Threats and Countermeasures

graph TB subgraph "BGP Security Threats" Hijacking[Route Hijacking
Unauthorized route advertisement] Leaking[Route Leaking
Accidental route propagation] Spoofing[IP Spoofing
Fake BGP packets] DDoS[DDoS Attacks
BGP session flooding] end subgraph "Security Countermeasures" Filtering[Prefix Filtering
Route validation] Authentication[MD5 Authentication
BGP session security] TTL[TTL Security
Hop count validation] RPKI[RPKI Validation
Route origin verification] end Hijacking --> Filtering Leaking --> Filtering Spoofing --> Authentication DDoS --> TTL Hijacking --> RPKI style Hijacking fill:#ffebee style Filtering fill:#e8f5e8 style RPKI fill:#fff8e1

Prefix Filtering Implementation

# Prefix filtering configuration examples

# 1. Inbound prefix filtering
ip prefix-list ALLOW_INBOUND permit 10.0.0.0/8 le 24
ip prefix-list ALLOW_INBOUND permit 172.16.0.0/12 le 24
ip prefix-list ALLOW_INBOUND permit 192.168.0.0/16 le 24

route-map FILTER_INBOUND permit 10
 match ip address prefix-list ALLOW_INBOUND

route-map FILTER_INBOUND deny 20

# 2. Outbound prefix filtering
ip prefix-list ALLOW_OUTBOUND permit 203.0.113.0/24
ip prefix-list ALLOW_OUTBOUND permit 198.51.100.0/24

route-map FILTER_OUTBOUND permit 10
 match ip address prefix-list ALLOW_OUTBOUND

route-map FILTER_OUTBOUND deny 20

# 3. Apply filters to BGP neighbors
router bgp 65001
 neighbor 192.168.1.2 route-map FILTER_INBOUND in
 neighbor 192.168.1.2 route-map FILTER_OUTBOUND out

Filtering Best Practices:

Prefix Validation: Only accept routes for allocated address space
AS_PATH Filtering: Reject routes with invalid AS_PATH
Community Filtering: Use communities for policy enforcement
Rate Limiting: Implement BGP update rate limiting

BGP Authentication and TTL Security

# MD5 authentication for BGP sessions
router bgp 65001
 neighbor 192.168.1.2 password BGP_SECRET_123
 neighbor 192.168.1.2 ttl-security hops 1

# TTL security configuration
router bgp 65001
 neighbor 10.0.0.2 ebgp-multihop 2
 neighbor 10.0.0.2 ttl-security hops 2

# BGP session monitoring
router bgp 65001
 neighbor 192.168.1.2 timers 30 90
 neighbor 192.168.1.2 keepalive-interval 30
 neighbor 192.168.1.2 hold-time 90

Security Configuration Guidelines:

Strong Passwords: Use complex, unique passwords for each peer
TTL Validation: Implement TTL security for eBGP sessions
Session Monitoring: Configure appropriate keepalive and hold timers
Logging: Enable BGP logging for security monitoring

BGP Multi-homing and Load Balancing

Implementing multi-homing strategies is essential for network reliability and performance optimization.

Multi-homing Architecture

graph TB subgraph "Enterprise Network" Router1[Router 1
Primary BGP Speaker] Router2[Router 2
Secondary BGP Speaker] Core[Core Network] end subgraph "ISP Connections" ISP1[ISP A
AS 65002] ISP2[ISP B
AS 65003] end subgraph "Traffic Flow" Inbound[Inbound Traffic] Outbound[Outbound Traffic] LoadBalancing[Load Balancing] end Router1 --> ISP1 Router2 --> ISP2 Core --> Router1 Core --> Router2 ISP1 --> Inbound ISP2 --> Inbound Outbound --> LoadBalancing LoadBalancing --> Router1 LoadBalancing --> Router2 style Router1 fill:#e8f5e8 style Router2 fill:#e8f5e8 style ISP1 fill:#fff3e0 style ISP2 fill:#fce4ec

Multi-homing Configuration Strategies

# Primary/Backup configuration
router bgp 65001
 neighbor 192.168.1.1 remote-as 65002
 neighbor 192.168.1.1 description "Primary ISP"
 neighbor 192.168.1.1 route-map SET_PREFERENCE_PRIMARY out

 neighbor 192.168.2.1 remote-as 65003
 neighbor 192.168.2.1 description "Backup ISP"
 neighbor 192.168.2.1 route-map SET_PREFERENCE_BACKUP out

# Route maps for traffic control
route-map SET_PREFERENCE_PRIMARY permit 10
 set local-preference 200
 set community 65001:100

route-map SET_PREFERENCE_BACKUP permit 10
 set local-preference 100
 set community 65001:200

# Load balancing with equal-cost paths
router bgp 65001
 maximum-paths 2
 maximum-paths ibgp 2

Multi-homing Benefits:

Redundancy: Multiple ISP connections for failover
Load Distribution: Traffic spread across multiple paths
Performance: Optimized routing based on ISP performance
Cost Optimization: Balance traffic based on pricing

Traffic Engineering with BGP

# Community-based traffic engineering
ip community-list 100 permit 65001:100
ip community-list 200 permit 65001:200

route-map TRAFFIC_ENGINEERING permit 10
 match community 100
 set local-preference 200
 set as-path prepend 65001

route-map TRAFFIC_ENGINEERING permit 20
 match community 200
 set local-preference 100
 set as-path prepend 65001 65001

# Apply to BGP neighbors
router bgp 65001
 neighbor 192.168.1.1 route-map TRAFFIC_ENGINEERING in
 neighbor 192.168.2.1 route-map TRAFFIC_ENGINEERING in

BGP Troubleshooting and Monitoring

Effective troubleshooting requires systematic approaches and proper monitoring tools.

Common BGP Issues and Solutions

Issue Category	Symptoms and Indicators	Diagnostic Steps and Solutions
Session Establishment	BGP neighbor in Idle state TCP connection failures Authentication errors	Check network connectivity Verify AS numbers and passwords Check access lists and firewalls
Route Advertisement	Routes not appearing in BGP table Unexpected route filtering Policy violations	Check route maps and prefix lists Verify redistribution configuration Check BGP network statements
Path Selection	Suboptimal route selection Unexpected traffic patterns Load balancing issues	Analyze path attributes Check route selection algorithm Verify policy configuration

Essential BGP Troubleshooting Commands

# BGP neighbor status verification
show ip bgp summary
show ip bgp neighbors
show ip bgp neighbors 192.168.1.1

# BGP routing table examination
show ip bgp
show ip bgp 10.0.0.0/8
show ip bgp regexp "65002"

# Path attribute analysis
show ip bgp 10.0.0.0/8 longer-prefixes
show ip bgp paths
show ip bgp community

# Real-time debugging
debug ip bgp updates
debug ip bgp keepalives
debug ip bgp events

# Route filtering verification
show ip prefix-list
show route-map
show ip bgp filter-list

Troubleshooting Methodology:

Verify Physical Connectivity: Check interface status and cabling
Check BGP Configuration: Verify AS numbers, passwords, and policies
Analyze Route Exchange: Monitor BGP updates and path attributes
Validate Policy Implementation: Check route maps and filters
Monitor Performance: Track convergence time and stability

BGP Monitoring and Alerting

# BGP monitoring script example
#!/bin/bash

# Check BGP session status
bgp_status=$(show ip bgp summary | grep -E "^(Neighbor|Total)" | tail -1)

if [[ $bgp_status == *"Idle"* ]] || [[ $bgp_status == *"Active"* ]]; then
    echo "ALERT: BGP session issues detected at $(date)" >> bgp_alerts.log
    echo "$bgp_status" >> bgp_alerts.log

    # Send notification
    echo "BGP Alert: $bgp_status" | mail -s "BGP Session Alert" admin@company.com
fi

# Monitor route count changes
current_routes=$(show ip bgp | grep -c "^*>")
if [ -f route_count.txt ]; then
    previous_routes=$(cat route_count.txt)
    if [ $current_routes -ne $previous_routes ]; then
        echo "Route count changed: $previous_routes -> $current_routes" >> bgp_changes.log
    fi
fi
echo $current_routes > route_count.txt

Key Points

💡 BGP Implementation Essentials

Autonomous System Design: Proper AS design and numbering is fundamental for scalable BGP implementation and internet connectivity
Protocol Architecture: Understanding BGP's path vector nature and TCP-based operation is crucial for troubleshooting and optimization
Path Attribute Management: Mastering BGP path attributes enables sophisticated routing policies and traffic engineering
Security Implementation: Prefix filtering, authentication, and TTL security are essential for protecting BGP infrastructure
Multi-homing Strategies: Proper multi-homing design provides redundancy, load balancing, and cost optimization
Monitoring and Troubleshooting: Systematic troubleshooting approaches and comprehensive monitoring ensure BGP network health
Policy Implementation: Route maps, prefix lists, and community attributes enable granular traffic control
Performance Optimization: Understanding route selection algorithms and attribute manipulation maximizes network efficiency

Learning Path Recommendation

Learning Stage	Recommended Focus Areas
Foundation	Basic networking concepts (IP addressing, routing fundamentals) TCP/IP protocol stack understanding Network topology and design principles
Intermediate	IGP protocols (OSPF, EIGRP) and routing concepts BGP basic configuration and neighbor establishment Path attributes and route selection understanding
Advanced	Complex BGP policies and route manipulation Multi-homing strategies and traffic engineering BGP security implementation and monitoring
Expert	Large-scale BGP design and optimization Advanced traffic engineering and load balancing BGP automation and orchestration

somaz v3.1.2

BGP (Border Gateway Protocol) Complete Guide - Internet's Core Routing Protocol

Overview

Key Concepts Covered

Autonomous System (AS) Fundamentals

What is an Autonomous System?

AS in Internet Architecture

Interior vs Exterior Routing Protocols

AS Boundary Router (ASBR) Role

BGP Protocol Architecture

BGP Protocol Characteristics

BGP vs IGP Comparison

BGP Message Types and Operation

iBGP vs eBGP Implementation

iBGP (Internal BGP) Architecture

eBGP (External BGP) Architecture

iBGP vs eBGP Configuration Differences

BGP Path Attributes and Route Selection

BGP Path Attributes Overview

BGP Route Selection Algorithm

Path Attribute Manipulation

BGP Security and Best Practices

BGP Security Threats and Countermeasures

Prefix Filtering Implementation

BGP Authentication and TTL Security

BGP Multi-homing and Load Balancing

Multi-homing Architecture

Multi-homing Configuration Strategies

Traffic Engineering with BGP

BGP Troubleshooting and Monitoring

Common BGP Issues and Solutions

Essential BGP Troubleshooting Commands

BGP Monitoring and Alerting

Key Points

Learning Path Recommendation

References

Understanding Database Schema

Somaz

Comments

BGP (Border Gateway Protocol) Complete Guide - Internet's Core Routing Protocol

Overview

Key Concepts Covered

Autonomous System (AS) Fundamentals

What is an Autonomous System?

AS in Internet Architecture

Interior vs Exterior Routing Protocols

AS Boundary Router (ASBR) Role

BGP Protocol Architecture

BGP Protocol Characteristics

BGP vs IGP Comparison

BGP Message Types and Operation

iBGP vs eBGP Implementation

iBGP (Internal BGP) Architecture

eBGP (External BGP) Architecture

iBGP vs eBGP Configuration Differences

BGP Path Attributes and Route Selection

BGP Path Attributes Overview

BGP Route Selection Algorithm

Path Attribute Manipulation

BGP Security and Best Practices

BGP Security Threats and Countermeasures

Prefix Filtering Implementation

BGP Authentication and TTL Security

BGP Multi-homing and Load Balancing

Multi-homing Architecture

Multi-homing Configuration Strategies

Traffic Engineering with BGP

BGP Troubleshooting and Monitoring

Common BGP Issues and Solutions

Essential BGP Troubleshooting Commands

BGP Monitoring and Alerting

Key Points

Learning Path Recommendation

References

Understanding Database Schema

Share

Somaz

Comments
