January 10, 2025 13 min to read

Kubernetes Service Accounts

Authentication and Authorization for Pod-based Applications

Image reference link

Overview

Service Account Core Concepts

What is a Service Account?

Image reference link

Service Accounts function as the identity mechanism for Pods, similar to how user accounts function for humans. When a Pod uses a Service Account, it receives credentials that allow it to interact with the Kubernetes API server according to the permissions assigned to that Service Account.

Service Account Lifecycle

Pre-Kubernetes 1.24

In versions before Kubernetes 1.24, a Secret containing a service account token was automatically created when a ServiceAccount was created:

$ kubectl get serviceaccount -n somaz
NAME                                   SECRETS   AGE
default                                1         27d

$ kubectl get secret -n somaz
NAME                                               TYPE                                  DATA   AGE
default-token-7c6dm                                kubernetes.io/service-account-token   3      27d

Kubernetes 1.24 and Later

Starting with Kubernetes 1.24, long-lived service account tokens are no longer automatically created. Instead, tokens are obtained through the TokenRequest API and mounted as projected volumes with automatic rotation.

For backward compatibility or specific use cases, you can still manually create long-lived tokens:

apiVersion: v1
kind: Secret
type: kubernetes.io/service-account-token
metadata:
  name: my-service-account-token
  annotations:
    kubernetes.io/service-account.name: my-service-account

Service Account Components

Key Elements of Service Accounts

1. Token

Key characteristics:

• Signed with the private key of the Kubernetes API server
• Can be verified using the corresponding public key
• Contains claims about the service account identity
• Used in HTTP Authorization header when making API requests

Token location in a Pod:

/var/run/secrets/kubernetes.io/serviceaccount/token

2. ca.crt

The ca.crt file contains the certificate of the certificate authority (CA) for the Kubernetes cluster. It serves as a trust anchor for verifying the API server’s identity.

Key characteristics:

• Used to validate the API server’s TLS certificate
• Prevents man-in-the-middle attacks
• Establishes secure TLS connection to the API server

CA certificate location in a Pod:

/var/run/secrets/kubernetes.io/serviceaccount/ca.crt

3. Namespace

The namespace element defines the default scope for the service account’s permissions when using Role and RoleBinding (as opposed to ClusterRole and ClusterRoleBinding).

Key characteristics:

• Stored as plain text in the mounted volume
• Indicates which namespace the service account belongs to
• Used by client libraries to determine the default namespace

Namespace location in a Pod:

/var/run/secrets/kubernetes.io/serviceaccount/namespace

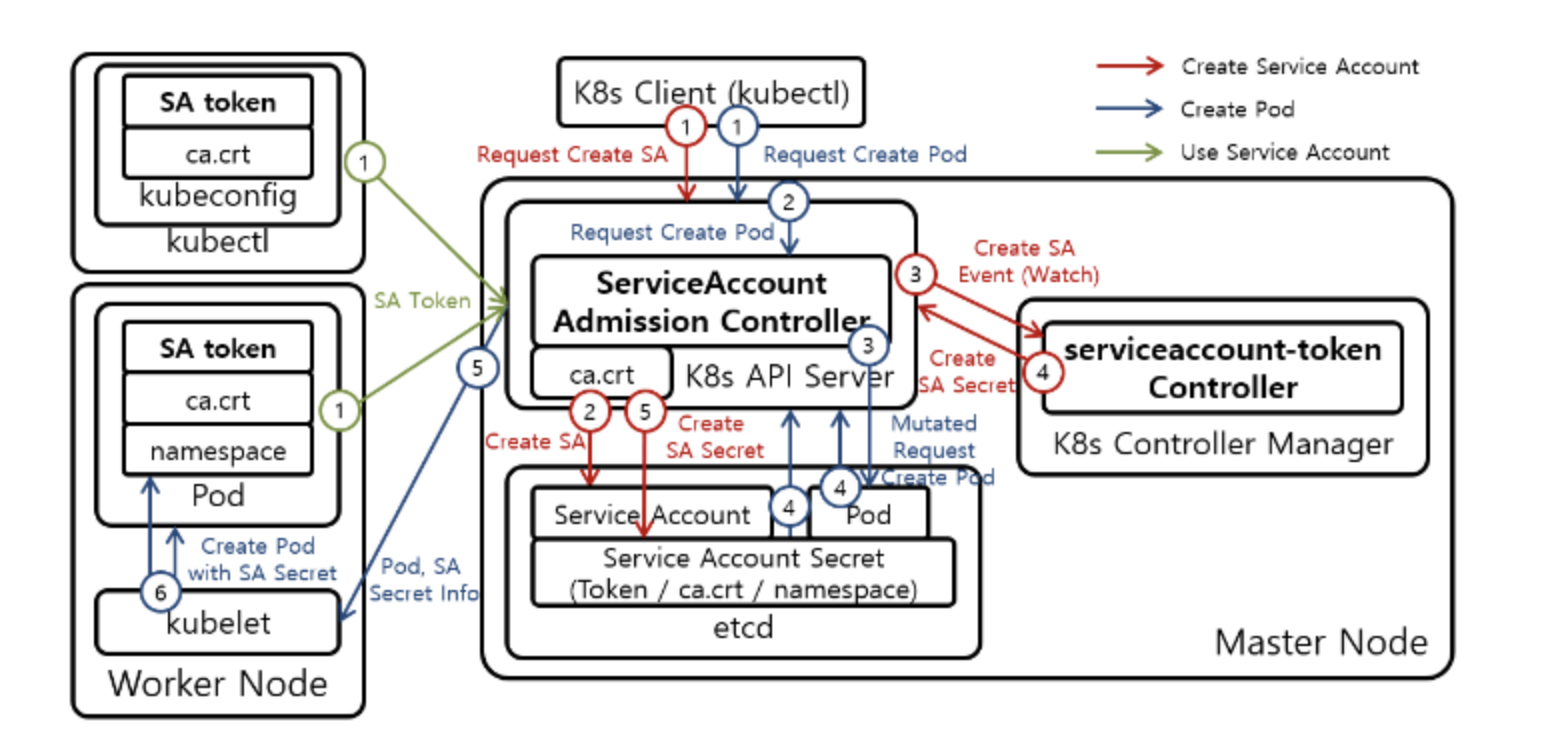

Internal Architecture

1. ServiceAccount Admission Controller

The ServiceAccount Admission Controller is part of the Kubernetes API server and performs the following functions:

• Assigns the default service account to pods that don’t specify a service account
• Ensures pods have a valid service account
• Modifies the pod spec to include volume mounts for service account tokens

2. ServiceAccount Token Controller

The ServiceAccount Token Controller is part of the kube-controller-manager and:

• Manages token generation for service accounts
• Creates and deletes token secrets when service accounts are created or deleted
• Removes tokens for deleted service accounts
• Adds tokens for new service accounts

3. ServiceAccount Controller

The ServiceAccount Controller ensures:

• Every namespace has a default service account
• Manages the lifecycle of service accounts
• Synchronizes service account resources with the cluster state

4. Token Request Projection

In Kubernetes 1.24+, the token request projection system:

• Generates short-lived tokens bound to specific pods
• Automatically rotates tokens before expiration
• Invalidates tokens when pods are deleted
• Provides tokens through the projected volume mechanism

RBAC Integration with Service Accounts

Understanding RBAC Components

Complete RBAC Example

# Service Account Definition
apiVersion: v1
kind: ServiceAccount
metadata:
  name: monitoring-agent
  namespace: monitoring
---
# Token Secret (K8s 1.24+)
apiVersion: v1
kind: Secret
type: kubernetes.io/service-account-token
metadata:
  name: monitoring-agent-token
  namespace: monitoring
  annotations:
    kubernetes.io/service-account.name: "monitoring-agent"
---
# Role Definition - Namespace Scoped
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: pod-metrics-reader
  namespace: monitoring
rules:
- apiGroups: [""]
  resources: ["pods", "pods/metrics"]
  verbs: ["get", "list"]
- apiGroups: ["metrics.k8s.io"]
  resources: ["pods"]
  verbs: ["get", "list"]
---
# RoleBinding - Binds Service Account to Role
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: monitoring-agent-metrics-reader
  namespace: monitoring
subjects:
- kind: ServiceAccount
  name: monitoring-agent
  namespace: monitoring
roleRef:
  kind: Role
  name: pod-metrics-reader
  apiGroup: rbac.authorization.k8s.io
---
# ClusterRole Definition - Cluster Scoped
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: node-metrics-reader
rules:
- apiGroups: [""]
  resources: ["nodes", "nodes/metrics", "nodes/stats"]
  verbs: ["get", "list"]
- apiGroups: ["metrics.k8s.io"]
  resources: ["nodes"]
  verbs: ["get", "list"]
---
# ClusterRoleBinding - Binds Service Account to ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: monitoring-agent-node-metrics-reader
subjects:
- kind: ServiceAccount
  name: monitoring-agent
  namespace: monitoring
roleRef:
  kind: ClusterRole
  name: node-metrics-reader
  apiGroup: rbac.authorization.k8s.io

Practical Service Account Examples

Examining Service Account in a Pod

Let’s look at how a service account manifests inside a running Pod:

# Check which service account is used by a Pod
kubectl describe pod -n somaz somaz-db-d7d785ff4-mwgfm

Output:

Mounts:
  /etc/mysql/conf.d from config-volume (rw)
  /var/lib/mysql from mysql-persistent-storage-dev2 (rw)
  /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-9dnzq (ro)

Examining the Service Account Tokens

# List files in the service account mount
kubectl exec -ti -n somaz somaz-db-d7d785ff4-mwgfm -- ls -l /var/run/secrets/kubernetes.io/serviceaccount/

total 0
lrwxrwxrwx 1 root root 13 Apr 12 10:00 ca.crt -> ..data/ca.crt
lrwxrwxrwx 1 root root 16 Apr 12 10:00 namespace -> ..data/namespace
lrwxrwxrwx 1 root root 12 Apr 12 10:00 token -> ..data/token

Creating and Binding Permissions

Below is an example of creating a Role and RoleBinding for a service account to access Pod information in a specific namespace:

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: pod-reader
  namespace: somaz
rules:
  - apiGroups: [""]
    resources: ["pods"]
    verbs: ["get", "watch", "list"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: pod-reader-binding
  namespace: somaz
subjects:
  - kind: ServiceAccount
    name: default
    namespace: somaz
roleRef:
  kind: Role
  name: pod-reader
  apiGroup: rbac.authorization.k8s.io

Testing API Access from a Pod

Once the permissions are set up, you can test the access from inside a Pod:

# Access the Pod
kubectl exec -ti -n somaz somaz-db-d7d785ff4-mwgfm -- bash

# Inside the Pod, access the Kubernetes API using the service account token
bash-4.4# cd /var/run/secrets/kubernetes.io/serviceaccount/
bash-4.4# TOKEN=$(cat token)
bash-4.4# curl -X GET https://$KUBERNETES_SERVICE_HOST/api/v1/namespaces/somaz/pods \
  --header "Authorization: Bearer $TOKEN" \
  --cacert ca.crt

Common Questions and Best Practices

Frequently Asked Questions

# Example:
echo $KUBERNETES_SERVICE_HOST
10.233.0.1

kubectl get service -n default
NAME         TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.233.0.1   <none>        443/TCP   372d

Service Account Best Practices

Example: Custom Service Account with Limited Permissions

# Create a dedicated service account
apiVersion: v1
kind: ServiceAccount
metadata:
  name: app-specific-account
  namespace: my-namespace
  annotations:
    kubernetes.io/description: "Service account for my application with limited permissions"
---
# Disable auto-mounting for pods that don't need it
apiVersion: v1
kind: Pod
metadata:
  name: no-api-access-pod
spec:
  serviceAccountName: default
  automountServiceAccountToken: false
  containers:
  - name: my-container
    image: nginx
---
# Create time-limited tokens when needed
apiVersion: v1
kind: Secret
type: kubernetes.io/service-account-token
metadata:
  name: time-limited-token
  annotations:
    kubernetes.io/service-account.name: "app-specific-account"
    kubernetes.io/service-account.expiration: "86400" # 24 hours in seconds

Advanced Service Account Topics

Service Account Impersonation

Kubernetes allows users with appropriate permissions to impersonate service accounts, which can be useful for debugging or testing permissions:

kubectl get pods --as=system:serviceaccount:namespace:serviceaccountname

External Identity Integration

Service accounts can be integrated with external identity providers:

1. OIDC Integration: Through token exchange mechanisms
2. Cloud Provider IAM: GCP Workload Identity, AWS IAM Roles for Service Accounts, Azure Pod Identity
3. Vault Integration: HashiCorp Vault for dynamic secret generation

Service Accounts in CI/CD Pipelines

Best practices for using service accounts in CI/CD pipelines:

1. Create dedicated service accounts for each pipeline with scoped permissions
2. Rotate tokens regularly
3. Store tokens securely in CI/CD secret management
4. Audit pipeline service account usage
