NoSQL Data Modeling: A Comprehensive Guide

Understanding Document, Key-Value, Column, and Graph Database Models

Overview

As the need to handle diverse unstructured data and large-scale traffic grows, NoSQL databases have become widely used beyond traditional RDBMS.

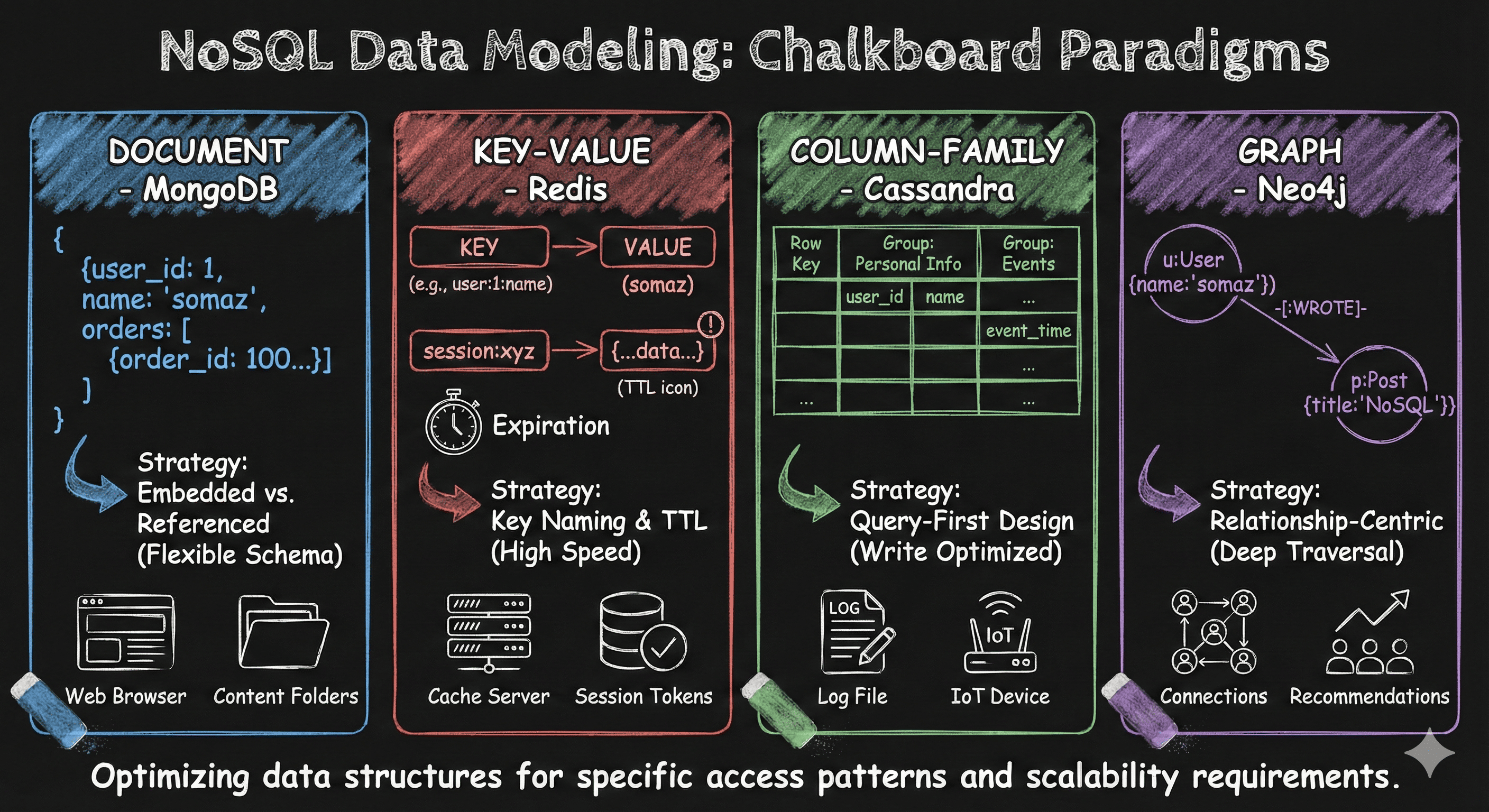

This article explores data modeling approaches for major NoSQL types: Document (MongoDB), Key-Value (Redis), Column (Cassandra), and Graph (Neo4j). Each technology requires different design methods based on data structure and processing patterns, making appropriate modeling strategies crucial for specific situations.

1. NoSQL Overview

NoSQL stands for “Not Only SQL” and is designed with flexible or no fixed schema, strong horizontal scalability, and often follows BASE (Basically Available, Soft state, Eventually consistent) principles rather than ACID. This makes it suitable for environments prioritizing availability and scalability over consistency.

Each NoSQL type should be chosen based on specific use cases, and many applications use hybrid architectures combining RDBMS and NoSQL databases.

2. Document Data Modeling (MongoDB)

Data Structure

• JSON-based hierarchical documents
• Modeling Strategy: Nested vs. Reference
• Advantages: Schema flexibility, ability to store complete data in a single document

{
  "user_id": 1,
  "name": "somaz",
  "orders": [
    { "order_id": 100, "item": "keyboard" },
    { "order_id": 101, "item": "monitor" }
  ]
}

• Use nested structures for frequently queried together data
• Use references for independent and repeatable structures

Note: MongoDB’s lookup operator is similar to RDB JOIN but can cause performance degradation if overused. Nested design is recommended for many-to-one relationships, while references are better for many-to-many relationships.

3. Key-Value Data Modeling (Redis)

Data Structure

• Simple key-value storage (strings, lists, hashes, sets)
• Modeling Strategy: Key Naming Convention, Expire Time settings
• Advantages: Ultra-fast response, suitable for caching and session storage

SET user:1:name "somaz"
SET user:1:email "somaz@example.com"

• Use prefixes (namespace) effectively in key design (user:1:profile)
• Enable automatic memory management with expire settings

Structure Selection Tips: Utilize Redis’s various structures based on data type:

• Hash: For structured field storage
• Sorted Set: For ranking systems
• List: For FIFO queues

4. Column Data Modeling (Cassandra)

Data Structure

• Column family-based, row-specific schema possible
• Modeling Strategy: Query-first design, composite partition keys
• Advantages: Strong in large-scale data writing and time-series event processing

CREATE TABLE user_events (
  user_id UUID,
  event_time timestamp,
  event_type text,
  PRIMARY KEY ((user_id), event_time)
);

• Allow redundancy over normalization, design around query patterns
• Poor partition key design can cause performance degradation

Caution: Cassandra has weak JOIN, subquery, and transaction capabilities. Design tables based on predicted query patterns, following the “1 query = 1 table” principle.

5. Graph Data Modeling (Neo4j)

Data Structure

• Nodes, Relationships, Properties
• Modeling Strategy: Connection-centric model
• Advantages: Suitable for friend recommendations, path finding, social network analysis

CREATE (u:User {name: "somaz"})
CREATE (p:Post {title: "NoSQL modeling"})
CREATE (u)-[:WROTE]->(p)

• Uses Cypher query language, designed around relationships
• More intuitive and faster relationship traversal than RDB JOINs

Neo4j excels with highly connected datasets but is unsuitable for simple CRUD-based bulk data storage. Consider adoption based on relationship density rather than query complexity.

Conclusion

NoSQL is not simply “databases without schema.” Each NoSQL database has unique data storage structures and query patterns requiring specific modeling strategies.

• MongoDB: Flexible structure suitable for web application development
• Redis: Optimal for caching and session storage
• Cassandra: Suitable for large-scale logs and time-series data
• Neo4j: Strong in relationship-based analysis

The core of modeling is “predicting user queries and designing structures accordingly.”

Note: Recent trends favor multi-model architectures combining different NoSQL databases (e.g., MongoDB + Redis, Cassandra + Spark, Neo4j + RDBMS) to leverage each system’s strengths. Role distribution is more important than satisfying all requirements with a single database.

References

• MongoDB Official Modeling Guide
• Redis Data Structures
• Cassandra Data Modeling Best Practices
• Neo4j Modeling Guide
• “NoSQL Distilled” – Pramod J. Sadalage & Martin Fowler (Book Recommendation)
