3-Tier Architecture and Modern Web Development

Understanding 3-Tier Architecture and Modern Web Development

Featured image


Overview

Traditional 3-tier architecture divides applications into presentation, application, and data layers. Modern web development has evolved this concept, particularly with cloud technologies.

The 3-tier architectural pattern has served as the foundation for enterprise applications for decades, offering a systematic approach to separating concerns, improving maintainability, and enhancing scalability. However, the landscape of web development is continuously evolving, with new technologies and methodologies pushing the boundaries of traditional architectural patterns.


Traditional 3-Tier Architecture

A structured approach to web development, dividing responsibilities into distinct layers.

Origins of 3-Tier Architecture

The 3-tier architecture emerged in the 1990s as an evolution of the client-server model. It addressed limitations of 2-tier systems by introducing a dedicated middle layer for business logic, enabling better scalability and maintainability. This pattern became the standard for enterprise applications throughout the 2000s and continues to influence modern architectural designs.


1. Presentation Layer (Client Tier)

The presentation layer is responsible for the user interface and how data is presented to end-users.

Key Components:

Technologies:


2. Application Layer (Business Logic Tier)

The application layer contains the core business logic and processes that drive the application’s functionality.

Key Components:

Technologies:


3. Data Layer (Data Tier)

The data layer handles data storage, retrieval, and persistence, ensuring data integrity and security.

Key Components:

Technologies:


Implementation Example

Let’s examine how a simple user registration feature might be implemented across the three tiers:

Presentation Layer:

<!-- User Registration Form -->
<form id="registration-form">
  <input type="text" id="username" placeholder="Username">
  <input type="email" id="email" placeholder="Email">
  <input type="password" id="password" placeholder="Password">
  <button type="submit">Register</button>
</form>

<script>
document.getElementById('registration-form').addEventListener('submit', async (e) => {
  e.preventDefault();

  const userData = {
    username: document.getElementById('username').value,
    email: document.getElementById('email').value,
    password: document.getElementById('password').value
  };

  try {
    const response = await fetch('/api/users/register', {
      method: 'POST',
      headers: { 'Content-Type': 'application/json' },
      body: JSON.stringify(userData)
    });

    const result = await response.json();
    if (response.ok) {
      displaySuccess('Registration successful!');
    } else {
      displayError(result.message);
    }
  } catch (error) {
    displayError('Network error, please try again.');
  }
});
</script>

Application Layer:

// Express.js API endpoint
app.post('/api/users/register', async (req, res) => {
  try {
    // Extract user data
    const { username, email, password } = req.body;

    // Validate input
    if (!username || !email || !password) {
      return res.status(400).json({ message: 'All fields are required' });
    }

    // Check if user already exists
    const existingUser = await UserService.findByEmail(email);
    if (existingUser) {
      return res.status(409).json({ message: 'Email already registered' });
    }

    // Hash password
    const hashedPassword = await bcrypt.hash(password, 10);

    // Create user
    const newUser = await UserService.create({
      username,
      email,
      password: hashedPassword
    });

    // Generate JWT token
    const token = generateToken(newUser);

    // Return success response
    res.status(201).json({
      message: 'User registered successfully',
      token,
      user: {
        id: newUser.id,
        username: newUser.username,
        email: newUser.email
      }
    });
  } catch (error) {
    console.error('Registration error:', error);
    res.status(500).json({ message: 'Internal server error' });
  }
});

Data Layer:

// User Service (Data Access Layer)
class UserService {
  static async findByEmail(email) {
    return await db.query(
      'SELECT * FROM users WHERE email = $1',
      [email]
    );
  }

  static async create(userData) {
    const { username, email, password } = userData;

    return await db.query(
      'INSERT INTO users (username, email, password) VALUES ($1, $2, $3) RETURNING id, username, email',
      [username, email, password]
    );
  }
}


Benefits of Traditional 3-Tier Architecture

Key Advantages
  • Separation of ConcernsEach layer has distinct responsibilities, making the system easier to understand and maintain
  • Independent DevelopmentTeams can work on different layers simultaneously
  • ScalabilityEach tier can be scaled independently based on demand
  • ReusabilityComponents in each layer can be reused across multiple applications
  • SecuritySensitive operations and data can be isolated in protected layers
  • MaintainabilityChanges in one layer have minimal impact on other layers

Solid architecture builds resilient systems.
Organize layers for maintainability and scalability.


Modern Web Development Evolution

Modern web development has evolved the traditional 3-tier architecture to address new challenges and leverage emerging technologies. The lines between tiers have become increasingly blurred, with more flexible and dynamic approaches to application design.


Web Server vs. Application Server

Web Server

Web servers primarily handle HTTP requests and serve static content to clients.

Responsibilities:

Popular Web Servers:


Application Server (WAS)

Application servers execute business logic and generate dynamic content based on user requests.

Responsibilities:

Popular Application Servers:

flowchart LR Client([Client Browser]) WebServer[Web Server] AppServer[Application Server] Database[(Database)] Client -->|HTTP Request| WebServer WebServer -->|Static Content| Client WebServer -->|Dynamic Request| AppServer AppServer -->|Business Logic| Database AppServer -->|Dynamic Content| WebServer WebServer -->|Response| Client


Modern Architectures and Patterns

Single-Page Applications (SPAs)

SPAs have transformed the traditional separation between presentation and application layers by shifting much of the application logic to the client side.

Characteristics:

Technologies:


API-First Approach

The API-first approach decouples the backend services from the presentation layer, allowing multiple client applications to consume the same services.

Characteristics:

Implementation:

// API Controller
app.get('/api/v1/products', async (req, res) => {
  try {
    const { category, limit, sort } = req.query;
    const products = await ProductService.findProducts({ category, limit, sort });
    res.json({
      status: 'success',
      count: products.length,
      data: products
    });
  } catch (error) {
    res.status(500).json({
      status: 'error',
      message: error.message
    });
  }
});


Serverless Architecture

Serverless computing abstracts server management and scales automatically, changing how application logic is deployed and executed.

Characteristics:

Technologies:

Example (AWS Lambda):

// User registration lambda function
exports.handler = async (event) => {
  try {
    const { username, email, password } = JSON.parse(event.body);

    // Validate input
    if (!username || !email || !password) {
      return {
        statusCode: 400,
        body: JSON.stringify({ message: 'All fields are required' })
      };
    }

    // Hash password and store user in database
    // ... implementation details

    return {
      statusCode: 201,
      body: JSON.stringify({
        message: 'User registered successfully',
        user: { id: newUser.id, username, email }
      })
    };
  } catch (error) {
    return {
      statusCode: 500,
      body: JSON.stringify({ message: 'Internal server error' })
    };
  }
};


Microservices Architecture

Microservices break down the monolithic application layer into smaller, independently deployable services.

Microservices Architecture

Microservices architecture decomposes applications into small, specialized services that focus on specific business capabilities.

Characteristics:
  • Independently deployable services
  • Service-specific data stores
  • Decentralized governance
  • Infrastructure automation
  • High resilience and fault isolation
Technologies:
  • Docker (containerization)
  • Kubernetes (orchestration)
  • Service mesh (Istio, Linkerd)
  • API gateways
  • Message brokers (Kafka, RabbitMQ)
flowchart TD Client([Client Applications]) Gateway[API Gateway] Auth[Auth Service] User[User Service] Product[Product Service] Order[Order Service] DB1[(Auth DB)] DB2[(User DB)] DB3[(Product DB)] DB4[(Order DB)] Client -->|HTTP Requests| Gateway Gateway --> Auth Gateway --> User Gateway --> Product Gateway --> Order Auth --> DB1 User --> DB2 Product --> DB3 Order --> DB4


JAMstack Architecture

The JAMstack (JavaScript, APIs, Markup) represents a modern web development architecture that prioritizes performance, security, and developer experience.

Core Principles:

Technologies:

Benefits:


Efficiency comes from modern solutions.
Blending roles enhances flexibility.


Architecture Comparison

Aspect Traditional 3-Tier Modern Web Development
Separation Clear boundaries Blurred lines
Web Server Static only Static & Dynamic
App Server Dedicated logic Embedded processing
Scalability Vertical scaling Microservices & Containers
Complexity Higher Lower
Technologies Apache, WebLogic Spring Boot, Node.js
Deployment Manual, lengthy Automated, continuous
Infrastructure Physical servers Cloud native, containers
Development Speed Slower Faster
Response to Change Resistant Agile


Content Types

Understanding the difference between static and dynamic content is essential for building optimized web applications.


Static Content

Content that doesn’t change unless manually updated.

Characteristics Examples
Immutable (unchanging) HTML Files
Fast Delivery CSS Stylesheets
Cacheable Images (PNG, JPG)
Pre-prepared Files JavaScript Files
CDN Distributable Web Fonts
No Server Processing PDF Documents

Delivery Optimization:

⚡ Static content is ideal for assets that don’t change frequently and need to load quickly.


Dynamic Content

Content that is generated in real-time based on user interactions or server data.

Characteristics Examples
Mutable (changes over time) User Profiles
Real-time Generation Dashboards
Server Processing Required Database Query Results
Personalized for Users Real-time Notifications
Interactive Elements Shopping Carts
Data-Driven Financial Reports

Performance Optimization:

Dynamic content is essential for personalized and interactive web experiences.

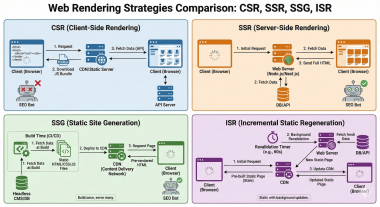

Static Site Generation (SSG) vs. Server-Side Rendering (SSR)

Modern frameworks have introduced hybrid approaches that combine benefits of both static and dynamic content:

Static Site Generation (SSG):

Server-Side Rendering (SSR):

Incremental Static Regeneration (ISR):


Key Takeaways

Build smarter. Optimize your web applications by combining static and dynamic content effectively.


Key Differences: Web Server vs Application Server

Feature Web Server Application Server
Content Type Static Dynamic
Processing Basic HTTP Complex Business Logic
Performance Faster More Resource Intensive
Scalability Horizontal Vertical
Protocols HTTP, HTTPS HTTP, HTTPS, RMI, SOAP
Functionality Request/Response Enterprise Features
Session Management Limited Advanced
Security Basic Comprehensive


Modern Convergence

In modern web development, the distinction between web servers and application servers is increasingly blurred:

Case Study: Evolution of a Web Application

Consider how a typical e-commerce application architecture has evolved:


Traditional (2000s):
  • Apache web server for static content
  • JBoss application server for business logic
  • Oracle database for data storage
  • Clear separation between tiers
Modern (2020s):
  • React SPA deployed on CDN (presentation)
  • Node.js microservices in Docker containers (application)
  • Combination of SQL and NoSQL databases (data)
  • Serverless functions for specific features
  • CI/CD pipeline for continuous deployment
  • Blurred boundaries between traditional tiers


Security Considerations

Security requirements evolve with architectural patterns:

Traditional 3-Tier Architecture Security:

Modern Application Security:

Security Best Practices:


The evolution of web architecture continues with several emerging trends:

Edge Computing:

WebAssembly:

Composable Architecture:

AI/ML Integration:


Key Takeaways

Balance structure and flexibility for optimal results.
Build systems that adapt and grow with your needs.
